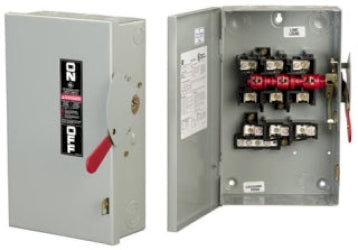

General Electric TG3225 - Fusible Disconnect Switch 400A @ 240V (100kA AIC)
Regular price
$2,924.32
$2,924.32
Regular price
$1,712.00
$1,712.00
Sale price
$2,924.32
$2,924.32
Save $-1,212.32
/
- In stock, ready to ship
- Backordered, shipping soon
General Electric TG3225 is a fusible safety disconnect switch designed for industrial power distribution protection. This NEMA 1-rated device features a 240V AC voltage rating with a 400A current capacity and 100kA interrupting rating at 240V for reliable circuit isolation. The rugged 70 lb unit employs a single-configuration, 2-pole design with Class R fuse compatibility, constructed for ED frame integration. It meets stringent industrial safety standards for electrical disconnects in commercial and manufacturing environments.
Key Features & Specifications
Key Features & Specifications
- Type: Fusible safety disconnect switch (Spec-Setter TG series)
- Voltage Rating: 240V AC
- Current Rating: 400A
- Configuration: Single
- Poles: 2
- AIC Rating: 100kA@240V
- Fuse Class: R
- NEMA Rating: NEMA 1
- Phase: 1
- Compatible Frames: ED
- Weight: 70 lb
- Switch Style: Fusible
- UPC: 078316400856
- GTIN: 00783164000000
Quote Request
