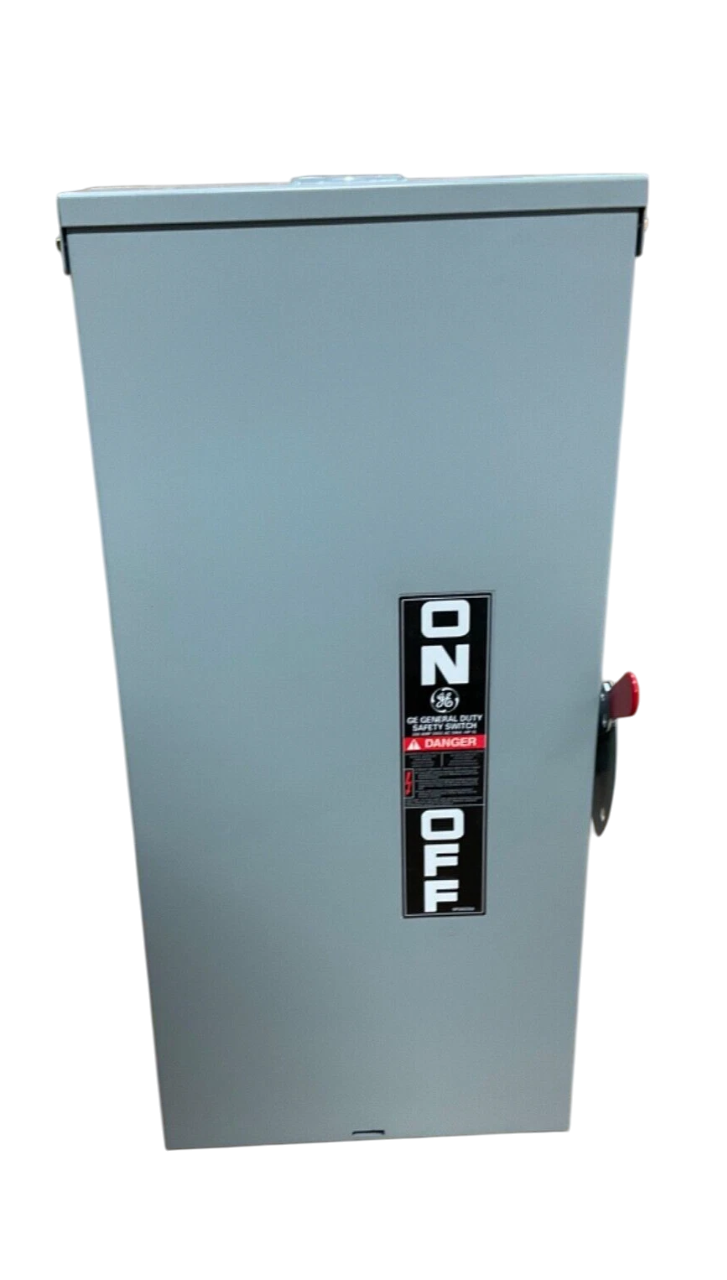

General Electric TG3224R - Fusible Disconnect Switch 200A@240V (100kA AIC)

General Electric TG3224R is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed unit features a 240V AC rating with 200A current capacity and 100kA interrupting rating at 240V for reliable circuit isolation. The rugged NEMA 3R enclosure houses a single-configuration, 2-pole switch mechanism compatible with ED frames, constructed with Class R fuse protection. It meets stringent safety standards for electrical disconnects in commercial and industrial environments, including motor control centers and HVAC systems.

Key Features & Specifications

• Type: Fusible safety disconnect switch with Class R fuse protection
• Voltage Rating: 240V AC
• Current Rating: 200A
• Configuration: Single
• Poles: 2
• AIC Rating: 100kA@240V
• NEMA Rating: 3R
• Phase: 1
• Certification: UL Listed
• Compatible Frames: ED
• Switch Style: Fusible
• Weight: 30 lb

Product Identification

• UPC: 783164008548
• GTIN: 00783164000000
