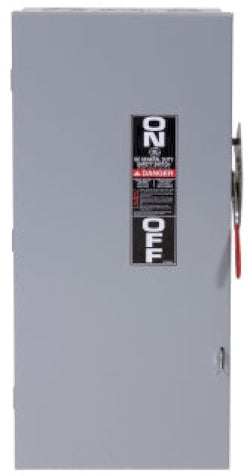

General Electric TG3223 - Fusible Disconnect Switch 100A 240V (2-Pole, 100kA AIC)

General Electric TG3223 is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This single-phase switch operates at 240V AC with a 100A current rating and features a 2-pole configuration for comprehensive circuit interruption. Constructed with a NEMA 1 enclosure and weighing 15 lb, the switch accommodates Class R fuses and provides 100kA interrupting capacity at 240V for robust short-circuit protection. UL Listed certification ensures compliance with industry safety standards, while compatibility with ED frames facilitates integration into existing electrical systems. Typical applications include industrial control panels, motor control centers, and machinery disconnects where safe maintenance isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Spec-Setter family, TG type
• Voltage Rating: 240V AC
• Current Rating: 100A
• Configuration: Single phase
• Poles: 2
• AIC Rating: 100kA@240V
• Fuse Class: R
• NEMA Rating: NEMA 1
• Switch Style: Fusible
• Compatible Frames: ED
• Certification: UL Listed
• Weight: 15 lb
• Applications: Industrial control panels, motor control centers, machinery disconnects

Product Identification

• UPC: 783164008531
• GTIN: 00783164008531
