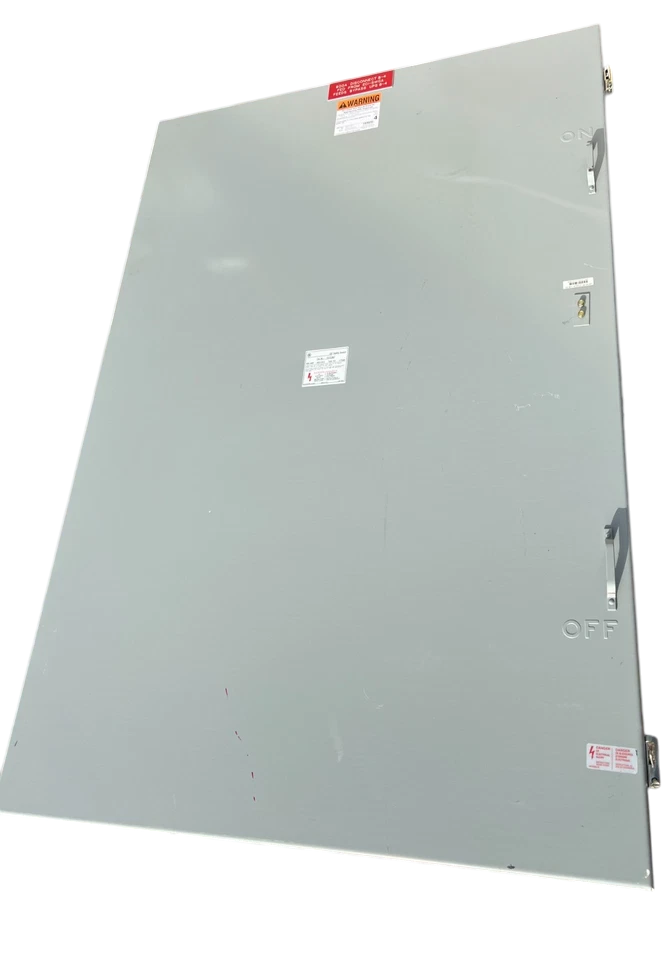

General Electric TC72367 - Fusible Safety Disconnect Switch 800A 600V (200kA AIC)

General Electric TC72367 is a fusible safety disconnect switch designed for industrial power distribution system protection and isolation. The unit features a 600V voltage rating with 800A current capacity and 200kA interrupting rating at 600V for robust short-circuit protection. Constructed as a 3-pole, single configuration switch in a NEMA 1 enclosure, this 40 lb device provides reliable operation in demanding environments. It complies with industry standards for safety disconnects and is part of the Spec-Setter family for consistent performance. Typical applications include industrial control panels, motor control centers, and main power distribution systems requiring secure isolation capabilities.

Key Features & Specifications

• Type: Fusible safety disconnect switch, industrial grade construction
• Voltage Rating: 600V AC
• Current Rating: 800A
• Dimensions: Standard industrial form factor
• Standards: Meets industrial safety disconnect requirements
• Applications: Industrial power distribution, motor control centers, main disconnects
• Switch Type: Safety disconnect
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Switch Style: Fusible
• Nema Rating: NEMA 1
• Phase: 3
• Weight: 40 lb
• Family: Spec-Setter
• Item Subcategory: Disconnect

Product Identification

• UPC: 783164077070
• GTIN: 40783164077078
