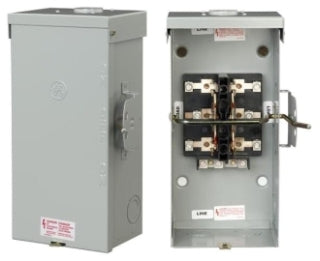

General Electric TC10324R - Manual Transfer Switch 200A 240V (NEMA 3R 100kA AIC)

General Electric TC10324R is a manual transfer switch designed for reliable power source switching in critical applications. This single-phase switch operates at 240V with a 200A current rating and features a robust non-fusible design with 2-pole configuration. Constructed with NEMA 3R rated enclosure for outdoor durability, it withstands temperature ranges from -25°C to 70°C and weighs 60 lb. The switch meets industry standards with 100kA interrupting capacity at 600V and is compatible with FD frames. Typical applications include emergency power systems, backup generator connections, and industrial power distribution where manual transfer capability is required.

Key Features & Specifications

• Type: Manual Transfer Switch, Non-Fusible, Spec-Setter Family
• Voltage Rating: 240V AC
• Current Rating: 200A
• Configuration: Single Phase
• Poles: 2
• AIC Rating: 100kA@600V
• NEMA Rating: 3R
• Temperature Rating: -25°C to 70°C
• Compatible Frames: FD
• Weight: 60 lb
• Enclosure: Weather-resistant
• Switch Style: Non-Fusible Manual Transfer
• Item Subcategory: Manual Transfer

Product Identification

• UPC: 78316402483
• GTIN: 40783164024836
