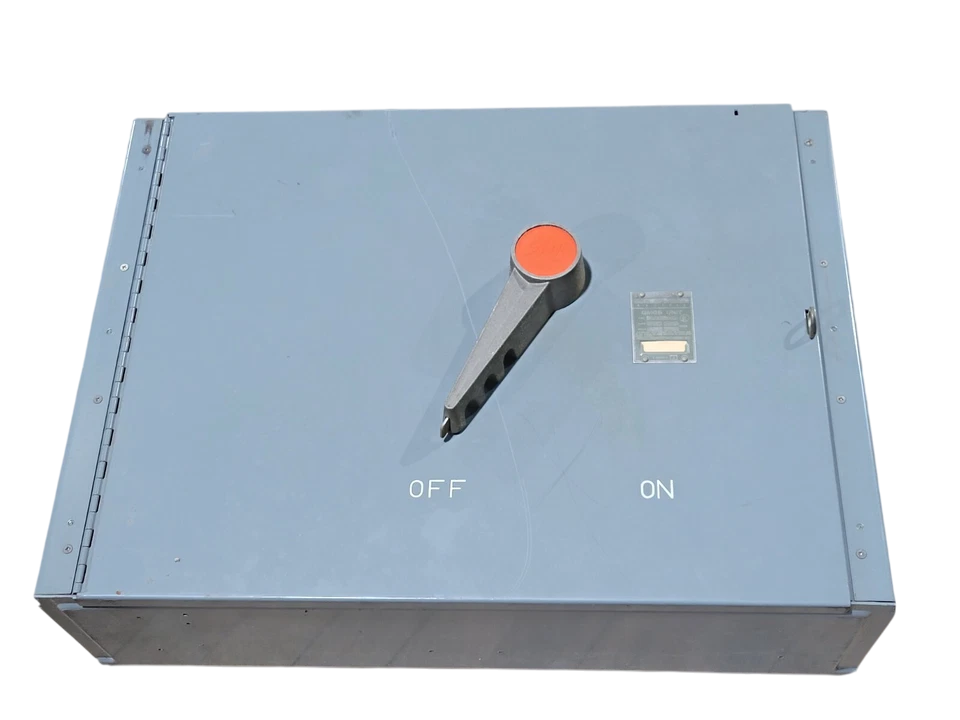

Federal Pacific QMQB7032R - Fusible Safety Switch 600A@240V (200kA AIC, NEMA 1)

Federal Pacific QMQB7032R is a fusible safety switch designed for industrial power distribution systems requiring high fault current protection. This 3-phase panel-mounted unit features a 600A current rating and 240V voltage rating with a 200kA interrupting capacity at 240V, housed in a NEMA 1-rated enclosure weighing 65 lb. The switch complies with industrial safety standards and accepts H, K, J, R, and L-class fuses in its SGPA-compatible frame. Typical applications include motor control centers, transformer protection, and heavy machinery power isolation where robust circuit protection is critical.

Key Features & Specifications

• Type: Fusible safety switch, panel mount, 3-pole configuration
• Voltage Rating: 240V AC
• Current Rating: 600A
• Dimensions: NEMA 1 enclosure (specific dimensions not provided)
• Standards: Industrial safety compliance (specific certifications not provided)
• Applications: Industrial power distribution, motor control centers, transformer protection
• Switch Type: Fusible
• Configuration: Single
• Phase: 3
• AIC rating: 200kA@240V
• Poles: 3
• Nema Rating: 1
• Fuse Class: H,K,J,R,L
• Compatible Frames: SGPA
• Weight: 65 lb
