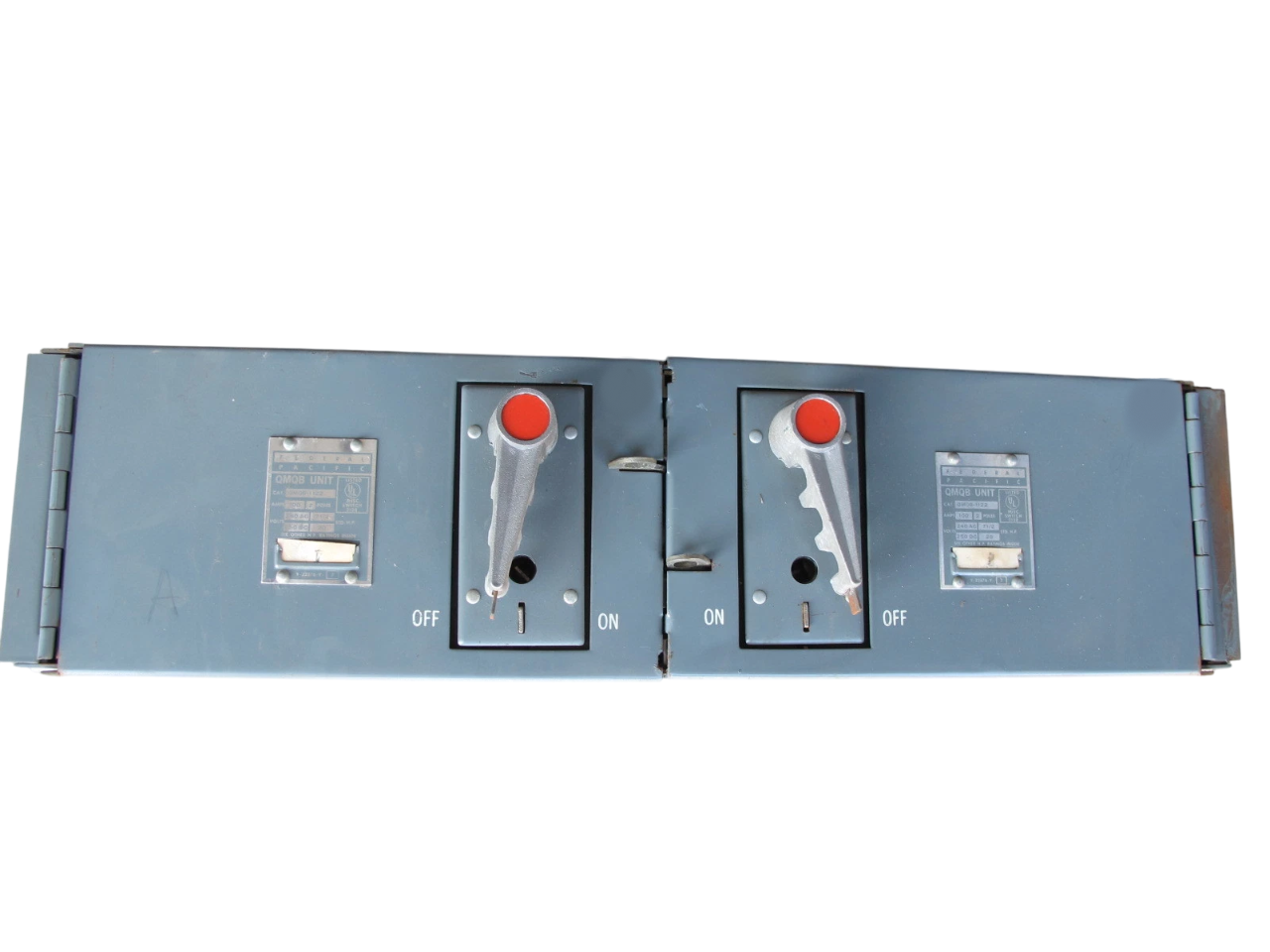

Federal Pacific QMQB1122 - Fusible Safety Switch 240V 100A (200kA AIC @240V)

Federal Pacific QMQB1122 is a panel-mounted fusible safety switch designed for industrial circuit protection and isolation. This 240V AC, 100A rated switch features a dual/twin configuration with 2 poles, offering 200kA interrupting capacity at 240V for robust fault protection. The NEMA 1-rated enclosure houses H/K/J/R class fuse compatibility in a 35 lb steel construction, meeting SEPA frame standards for panel integration. Compliant with industrial safety requirements, it serves in motor control centers, machinery disconnects, and power distribution systems requiring high fault current protection.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch with dual/twin configuration
• Voltage Rating: 240V AC
• Current Rating: 100A
• Dimensions: Compatible with SEPA frames
• Standards: NEMA 1 enclosure rating
• Applications: Motor control centers, industrial disconnects, power distribution
• Switch Style: Fusible
• Configuration: Dual/Twin
• Poles: 2
• AIC rating: 200kA@240V
• Phase: 1
• Fuse Class: H,K,J,R
• Weight: 35 lb
• Compatible Frames: SEPA
