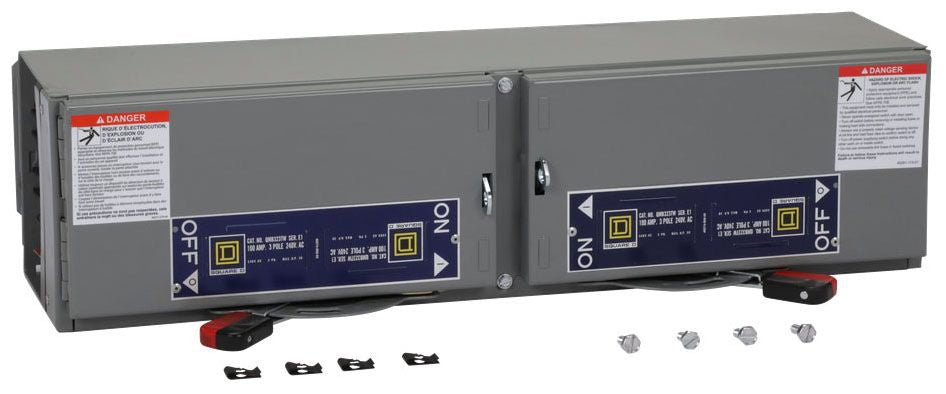

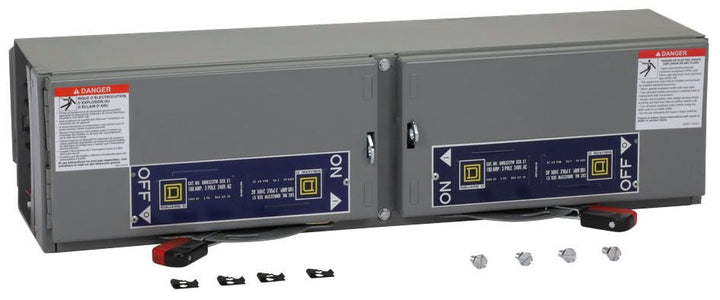

Square D QMB323TW - Fusible Safety Switch 240V 100A (200kA AIC @240V)
Regular price
$2,972.56
$2,972.56
Regular price
$4,627.06
$4,627.06
Sale price
$2,972.56
$2,972.56
Save $1,654.50
/
- In stock, ready to ship
- Backordered, shipping soon
Square D QMB323TW is a panel-mounted fusible safety switch designed for industrial power distribution protection. The switch features a 240V AC voltage rating with a 100A current capacity and 200kA AIC rating at 240V for robust short-circuit protection. Its NEMA 1-rated enclosure measures 229 x 112.78 x 78.49 mm (HxWxD) and weighs 10.43 lb, constructed with aluminum wire terminations (12 to 1/0 AWG). Certified to NEMA KS1 standards, this 3-phase switch is compatible with ED frames and supports R, H, K, J, and T class fuses for motor control and power distribution applications.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: QMB Series E1-E2 fusible safety switch
- Voltage Rating: 240V AC
- Current Rating: 100A
- Dimensions: 229 x 112.78 x 78.49 mm (HxWxD)
- Standards: NEMA KS1, NEMA 1 enclosure
- Applications: Industrial power distribution, motor control
- Switch Style: Fusible
- Configuration: Dual/Twin
- Poles: 3
- Wire Size: 12 to 1/0 AWG Aluminum
- AIC Rating: 200kA@240V
- Fuse Class: R, H, K, J, T
- Phase: 3
- Compatible Frames: ED
- Weight: 10.43 lb
Product Identification
- UPC: 785901765745
- GTIN: 00785901765745
