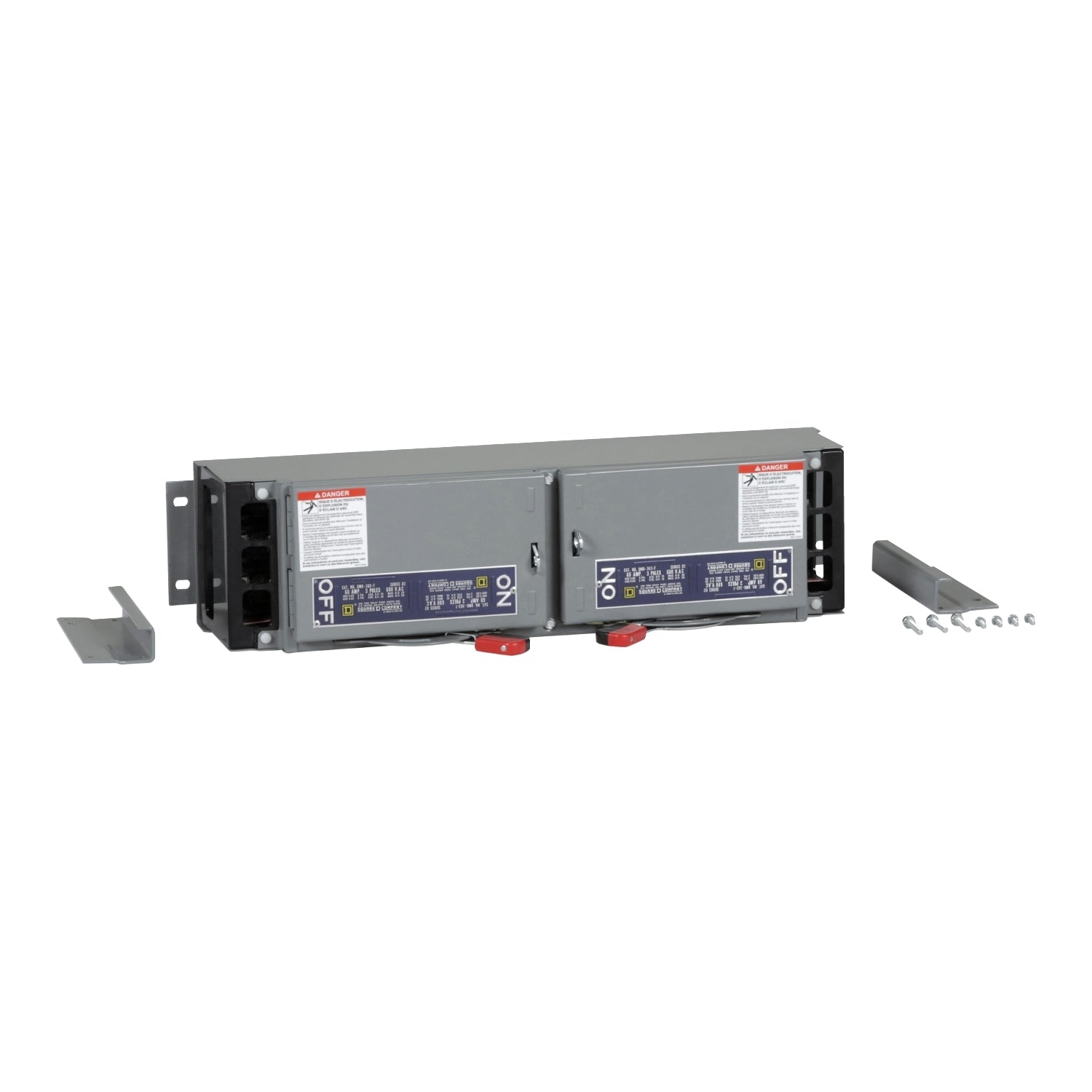

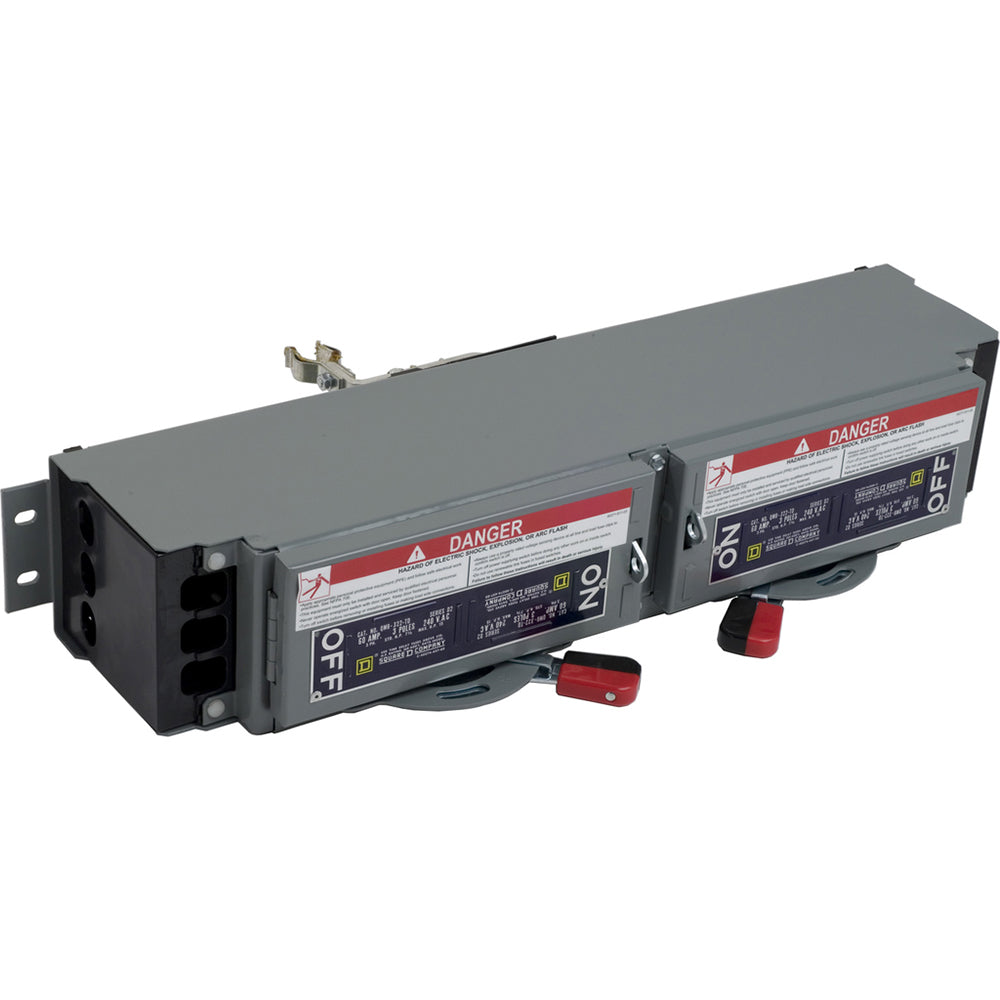

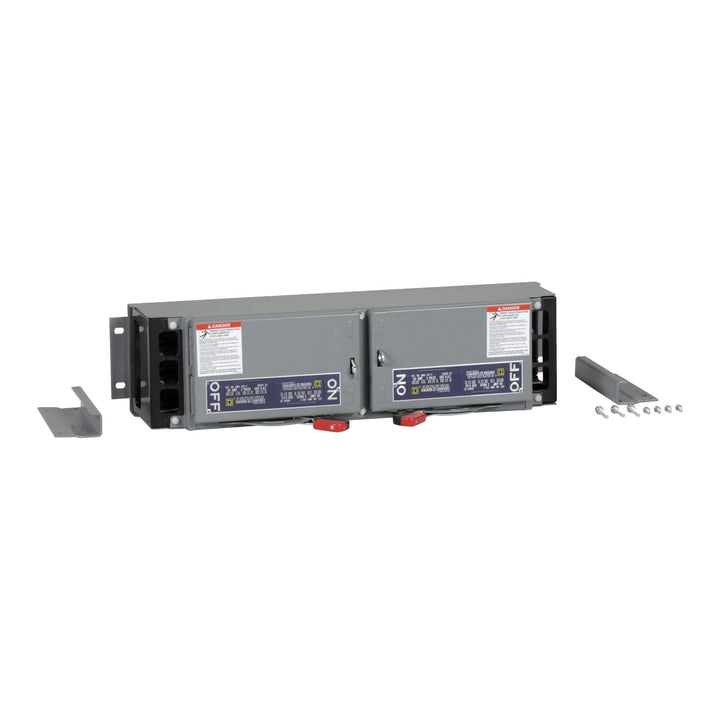

Square D QMB322TD - Fusible Safety Switch 60A 240V (200kA AIC Rating)

Square D QMB322TD is a panel-mounted fusible safety switch designed for reliable circuit protection and isolation in industrial applications. This 240V AC, 60A rated switch features a dual/twin configuration with 3 poles and provides 200kA interrupting capacity at 240V for robust fault protection. The switch measures 114 mm in depth and weighs 8.01 lb, constructed with NEMA 1 rated enclosure for indoor industrial environments. It complies with NEMA KS1, CSA, and UL standards, ensuring adherence to industry safety requirements. Typical applications include industrial control panels, motor disconnects, and power distribution systems where fused protection is required.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch, QMB Series E1-E2
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 114 mm depth
• Standards: NEMA KS1, CSA, UL certified
• Applications: Industrial control panels, motor disconnects, power distribution
• Switch Type: Fusible safety switch
• Configuration: Dual/Twin
• Poles: 3
• AIC rating: 200kA@240V
• Nema Rating: 1
• Phase: 1
• Fuse Class: R, H, K
• Compatible Frames: HHED
• Weight: 8.01 lb
• Country of Origin: United States

Product Identification

• UPC: 78590153592
• GTIN: 00785901535928
