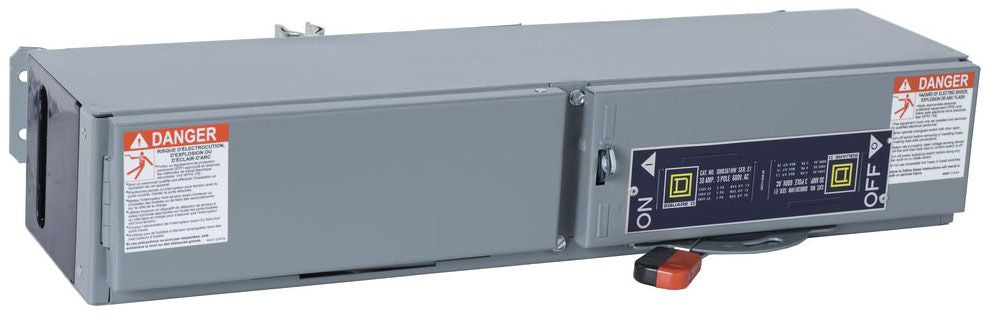

Schneider Electric QMB322HW - Fusible Disconnect Switch 3P 60A @ 240V (200kA AIC)

Schneider Electric QMB322HW is a fusible safety disconnect switch designed for secure power isolation in industrial applications. This 3-pole switch operates at 240V AC with a 60A current rating and 200kA AIC rating at 240V, housed in a compact 114 x 78.49 x 112.78 mm (HxWxD) NEMA 1 enclosure weighing 30 lb. CSA/UL-certified for safety compliance, it accepts R/H/K-class fuses and accommodates 12-2 AWG aluminum or 14-4 AWG copper wiring. The switch is engineered for three-phase systems in panelboards and motor control centers requiring NSX frame compatibility.

Key Features & Specifications

• Type: Fusible safety disconnect switch, QMB Series E1-E2
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 4.49" x 3.09" x 4.44" (114 x 78.49 x 112.78 mm)
• Standards: CSA, UL
• Applications: Industrial power distribution, motor control
• Fuse Class: R, H, K
• Configuration: Single
• Poles: 3
• Wire Size: 12-2 AWG (Aluminum), 14-4 AWG (Copper)
• AIC Rating: 200kA@240V
• Switch Style: Fusible
• NEMA Rating: 1
• Phase: 3
• Compatible Frames: NSX
• Weight: 30 lb

Product Identification

• UPC: 785901748076
• GTIN: 00785901748076
