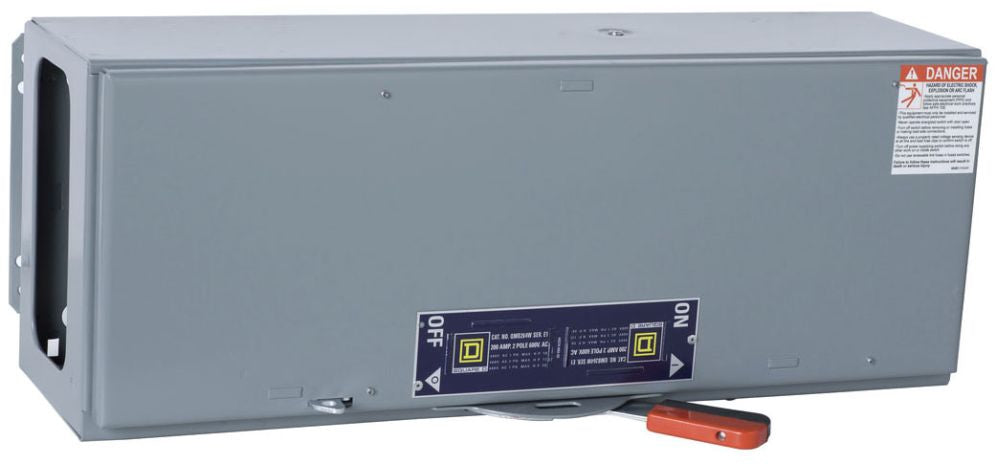

Square D QMB224W - Fusible Safety Switch 200A @ 240V (200kA AIC)
Regular price
$519.64
$519.64
Regular price
Sale price
$519.64
$519.64
Save $-519.64
/
- In stock, ready to ship
- Backordered, shipping soon
Square D QMB224W is a fusible panel-mounted safety switch designed for industrial power distribution and circuit protection. The unit features a 240V AC voltage rating with a 200A current capacity, housed in a rugged NEMA 1-rated enclosure measuring 381mm (H) x 143.26mm (W) x 136.65mm (D) and weighing 13.19 lb. Certified to NEMA KS1 standards, this single-configuration switch delivers 200kA interrupting capacity at 240V for reliable fault protection in commercial and industrial applications.
Key Features & Specifications
Key Features & Specifications
- Type: QMB Series E1-E2 fusible safety switch
- Voltage Rating: 240V AC
- Current Rating: 200A
- Dimensions: 381mm (H) x 143.26mm (W) x 136.65mm (D)
- Standards: NEMA KS1
- Applications: Industrial power distribution, motor control, circuit protection
- Switch Type: Fusible
- Configuration: Single
- Poles: 2
- AIC Rating: 200kA@240V
- Phase: 1
- Fuse Class: R
- NEMA Rating: 1
- Compatible Frames: HED
- Weight: 13.19 lb
- UPC: 785901765783
- GTIN: 00785901765783
