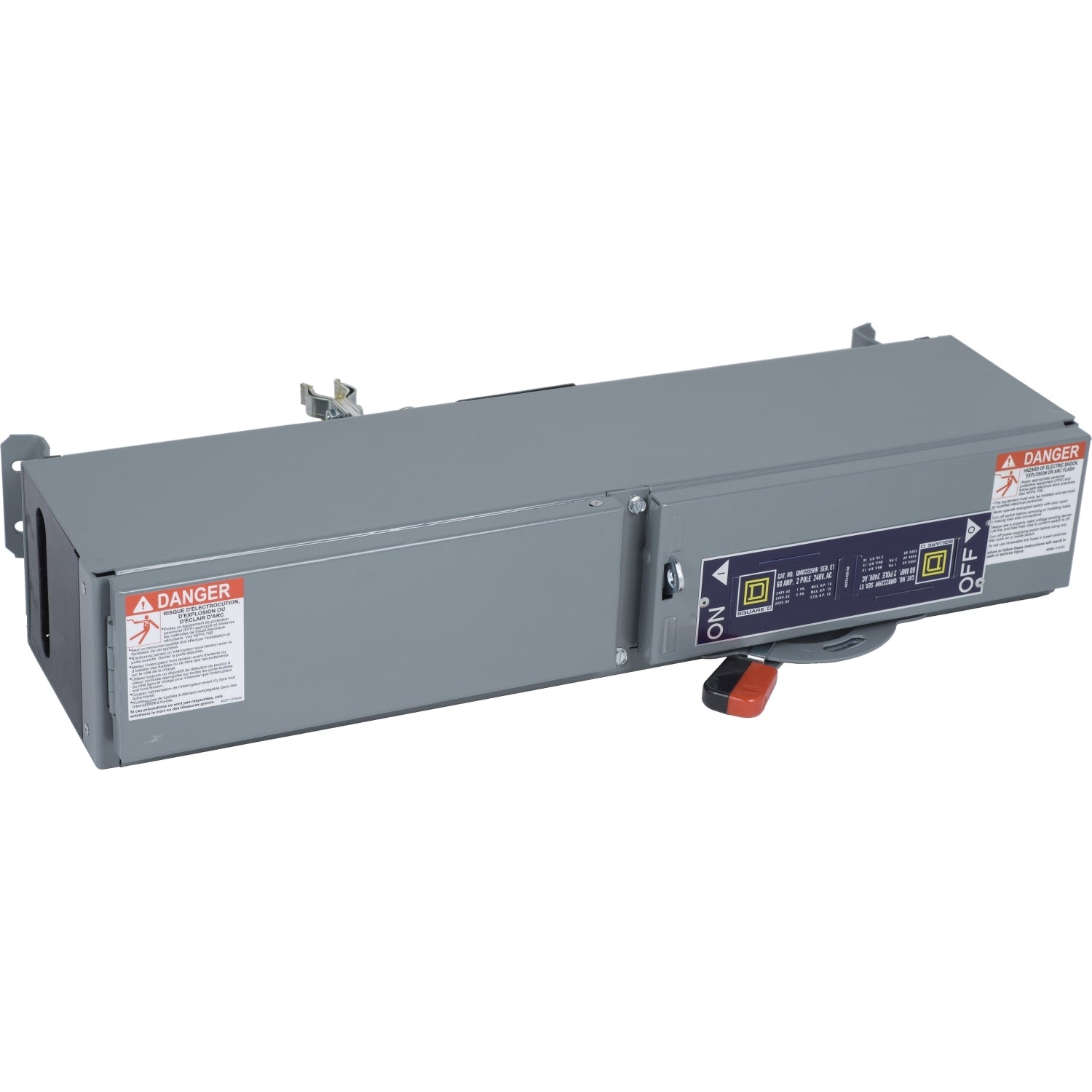

Square D QMB222TD - Fusible Safety Switch 60A@240V (200kA AIC)

Square D QMB222TD is a fusible safety switch designed for industrial power distribution protection. This panel-mounted unit features a 240V AC rating with 60A current capacity and 200kA interrupting rating at 240V, housed in a NEMA 1 enclosure for basic indoor protection. The dual-pole configuration with R/H/K class fuse compatibility ensures reliable circuit isolation in single-phase systems. Constructed for ED frame compatibility, it meets industrial safety standards for electrical disconnects. Typical applications include motor control centers, HVAC systems, and machinery power distribution panels.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch (QMB Series E1-E2)
• Voltage Rating: 240V AC
• Current Rating: 60A
• Configuration: Dual/Twin
• Poles: 2
• AIC Rating: 200kA@240V
• Fuse Class: R, H, K
• Phase: 1
• NEMA Rating: 1
• Compatible Frames: ED
• Weight: 30 lb
• Switch Style: Fusible
