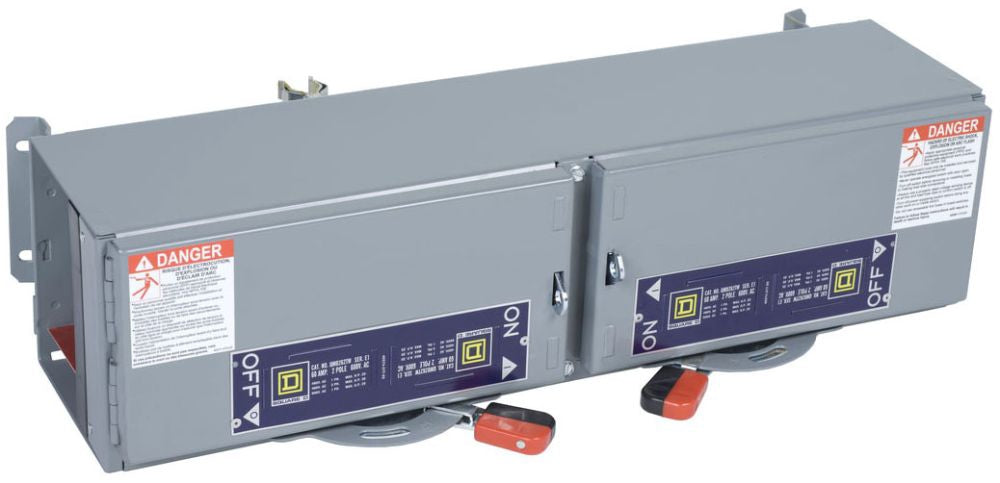

Square D QMB222T - Fusible Safety Switch 240V AC (60A, 200kA AIC)

Square D QMB222T is a fusible panel-mounted safety switch designed for industrial power distribution systems requiring high fault current protection. This 240V AC, 60A rated switch features a dual/twin configuration with 2 poles and a 200kA interrupting capacity at 240V, housed in a rugged NEMA 1 enclosure weighing 30 lb. The QMB Series D2 switch complies with industrial safety standards and accepts R, H, and K class fuses, making it compatible with ED frame installations. Its robust construction and high AIC rating make it ideal for protecting motors, transformers, and feeder circuits in commercial and industrial facilities.

Key Features & Specifications

• Type: Fusible safety switch, panel mount, QMB Series D2
• Voltage Rating: 240V AC
• Current Rating: 60A
• Configuration: Dual/Twin
• Poles: 2
• AIC Rating: 200kA @ 240V
• Fuse Class: R, H, K compatible
• NEMA Rating: 1
• Phase: 1
• Weight: 30 lb
• Compatible Frames: ED
• Switch Style: Fusible
