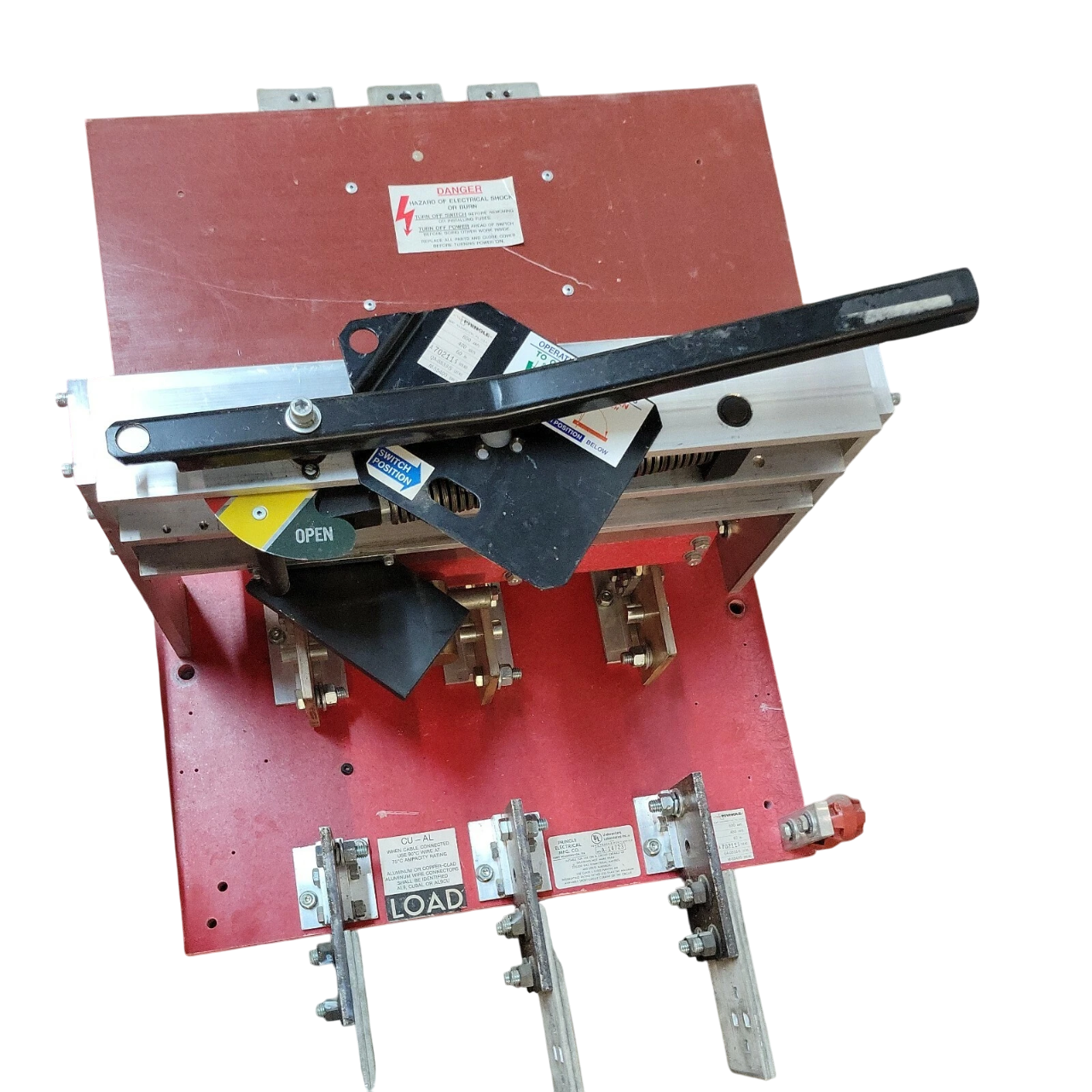

Cutler Hammer QA-3033-B - Fusible Disconnect Switch 3000A@480V (200kA AIC)
Regular price
$0.00
$0.00
Regular price
Sale price
$0.00
$0.00
Save $0
/
- In stock, ready to ship
- Backordered, shipping soon
Cutler Hammer QA-3033-B is a bolted pressure switch designed for high-current industrial power distribution systems, featuring a fusible disconnect mechanism for circuit protection. It operates at 480V AC with a 3000A current rating and 200kA interrupting capacity, housed in a rugged NEMA 3R-rated enclosure weighing 150 lb. The switch complies with industry standards for bolted pressure devices, utilizing Class L fuses in a 3-pole single-configuration design. Typical applications include main service disconnects, motor control centers, and heavy-duty power distribution in industrial facilities.
Key Features & Specifications
Key Features & Specifications
- Type: Fusible bolted pressure switch (Pringle family, QA series)
- Voltage Rating: 480V AC
- Current Rating: 3000A
- Configuration: Single
- Poles: 3
- AIC Rating: 200kA@480V
- Fuse Class: L
- Phase: 3
- NEMA Rating: 3R
- Compatible Frames: TJK
- Weight: 150 lb
- Switch Style: Fusible disconnect
Quote Request
