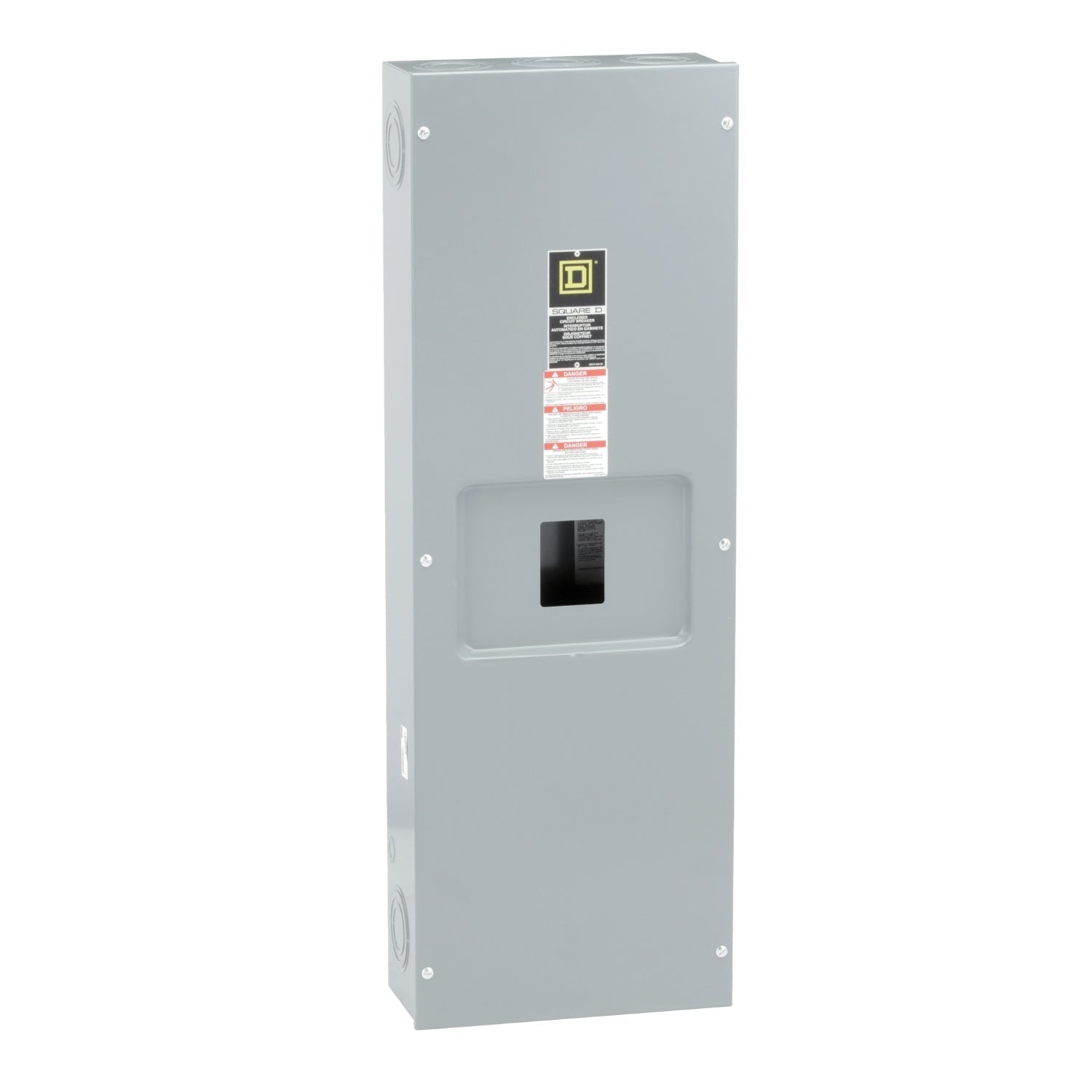

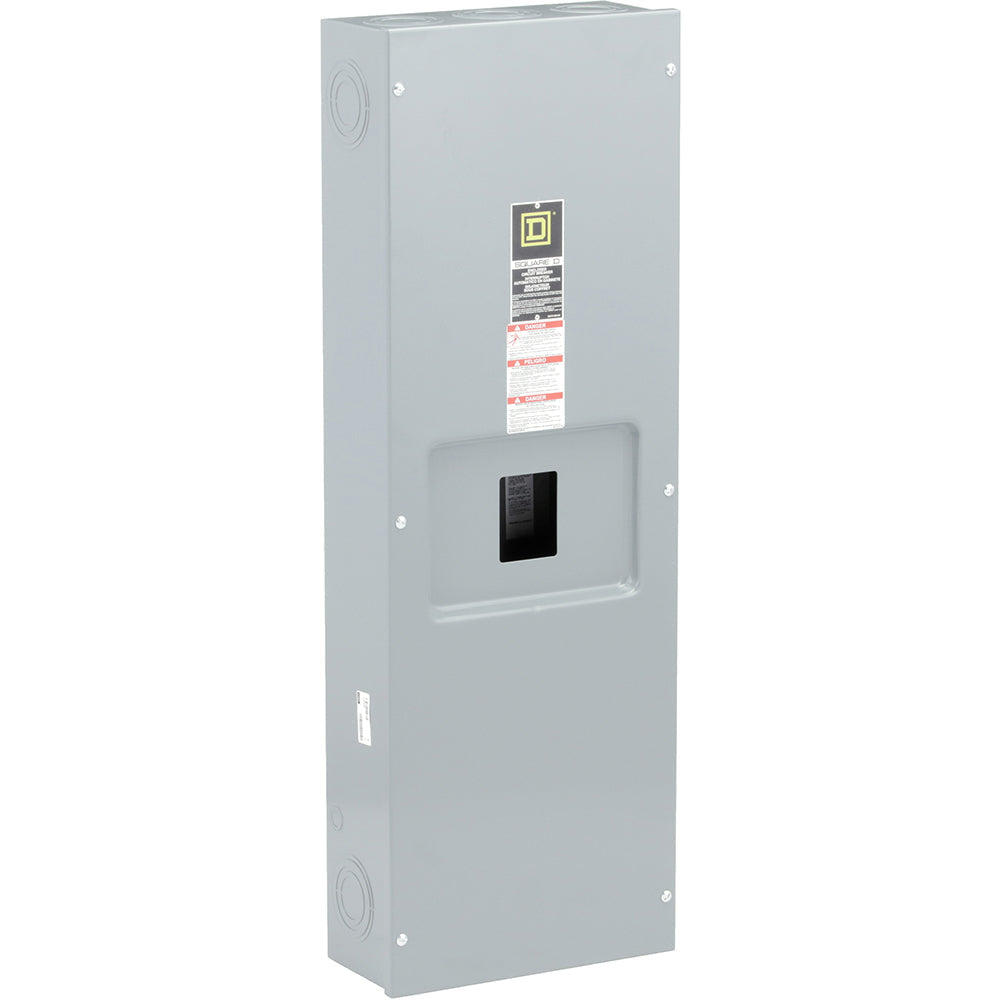

Square D LA400S - Safety Disconnect Switch 400A 600V (NEMA 1 Rated)

Square D LA400S is a heavy-duty safety disconnect switch designed for reliable circuit isolation and load-breaking operations in industrial power distribution systems. This 600V AC rated switch handles 400A continuous current and features robust construction with dimensions of 15.38 x 44.00 x 44.5 inches and a weight of 24.49 lb. The switch complies with NEMA 1 standards for indoor use and operates effectively across a temperature range of -25 to 70°C (-13 to 158°F). Typical applications include industrial control panels, motor control centers, and main power distribution systems where safe maintenance isolation is required.

Key Features & Specifications

• Type: LA Series safety disconnect switch, L Frame family
• Voltage Rating: 600V AC
• Current Rating: 400A
• Dimensions: 15.38 in x 44.00 in x 44.5 in
• Weight: 24.49 lb
• Standards: NEMA 1 certified
• Applications: Industrial power distribution, motor control centers, main circuit isolation
• Switch Type: Safety disconnect
• Configuration: Heavy-duty industrial
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Compatible Frames: LAL, LHL
• Enclosure: NEMA 1 rated
• Country of Origin: Mexico

Product Identification

• UPC: 785901508014
• GTIN: 00785901507208
