HU364

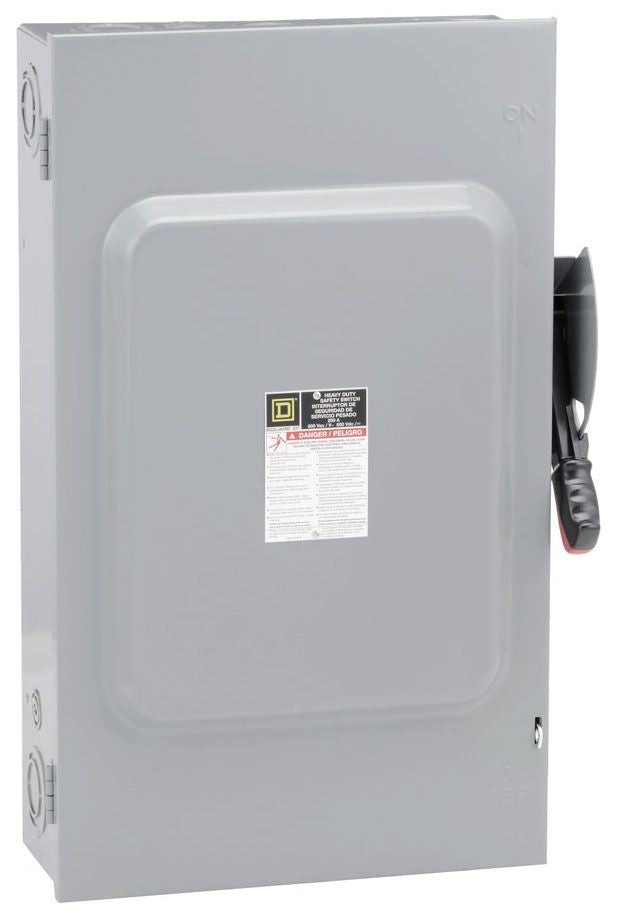

Square D HU364 is a heavy-duty non-fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit isolation. This UL-listed 600VAC-rated switch delivers 200A continuous current capacity with a 200kA interrupting rating, housed in a NEMA 1 enclosure for indoor protection. The three-pole single-throw configuration features robust copper-aluminum terminals accepting #6 to 250 AWG/KCMIL conductors, compatible with NSX breaker frames. Its 62 lb industrial-grade construction meets stringent safety standards for commercial facilities, manufacturing plants, and high-capacity electrical service entrances.

Key Features & Specifications

• Type: Non-fusible disconnect switch, Series F, HU type
• Voltage Rating: 600V AC
• Current Rating: 200A
• Configuration: Single, 3-pole
• Wire Size: #6 to 250 AWG/KCMIL (Aluminum/Copper)
• AIC Rating: 200kA@600V
• Phase: 3
• NEMA Rating: 1
• Certification: UL
• Compatible Frames: NSX
• Weight: 62 lb

Product Identification

• UPC: 785901505860
• GTIN: 00785901505860

Square D HU364 - Non-Fusible Disconnect Switch 600V/200A (3-Pole NEMA 1)
