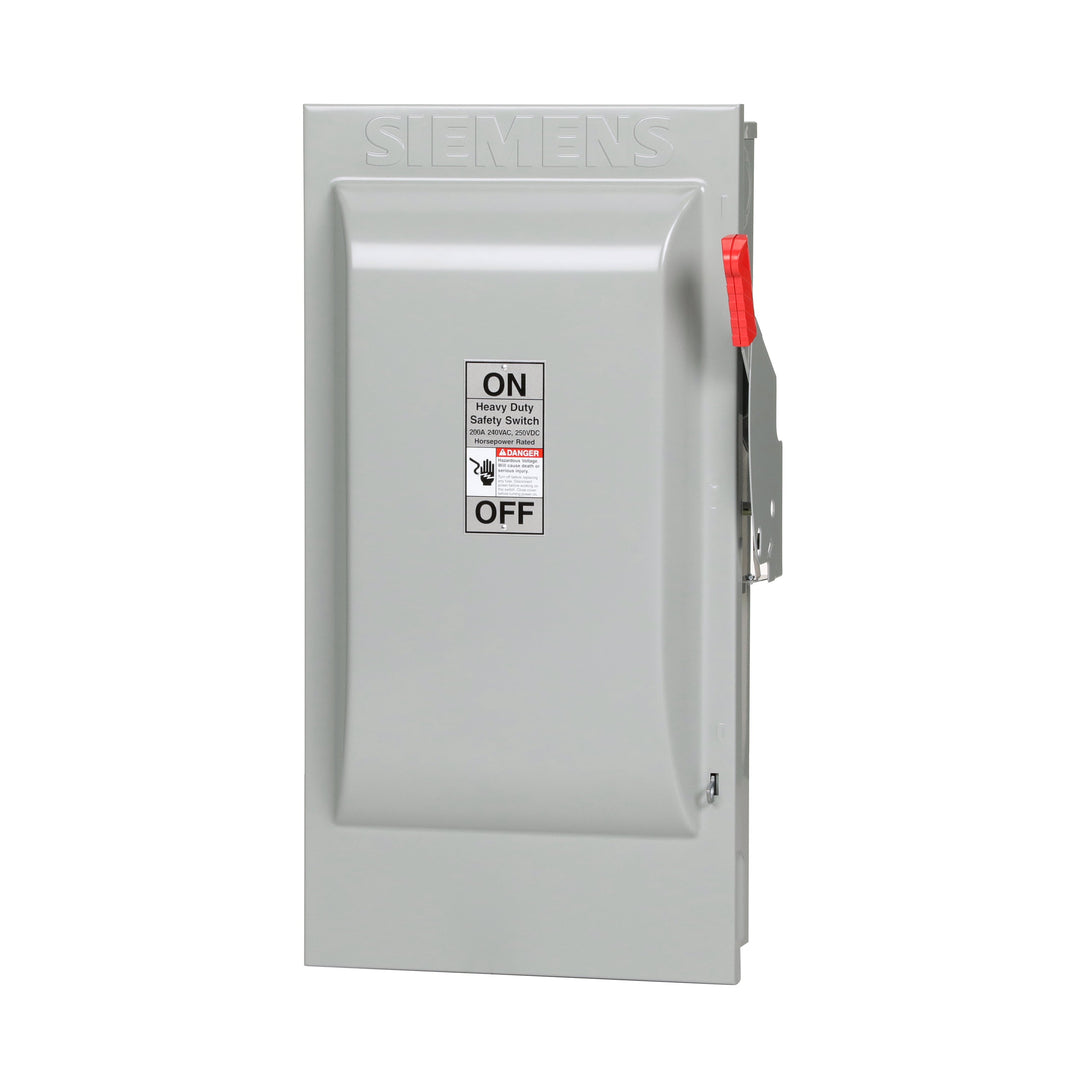

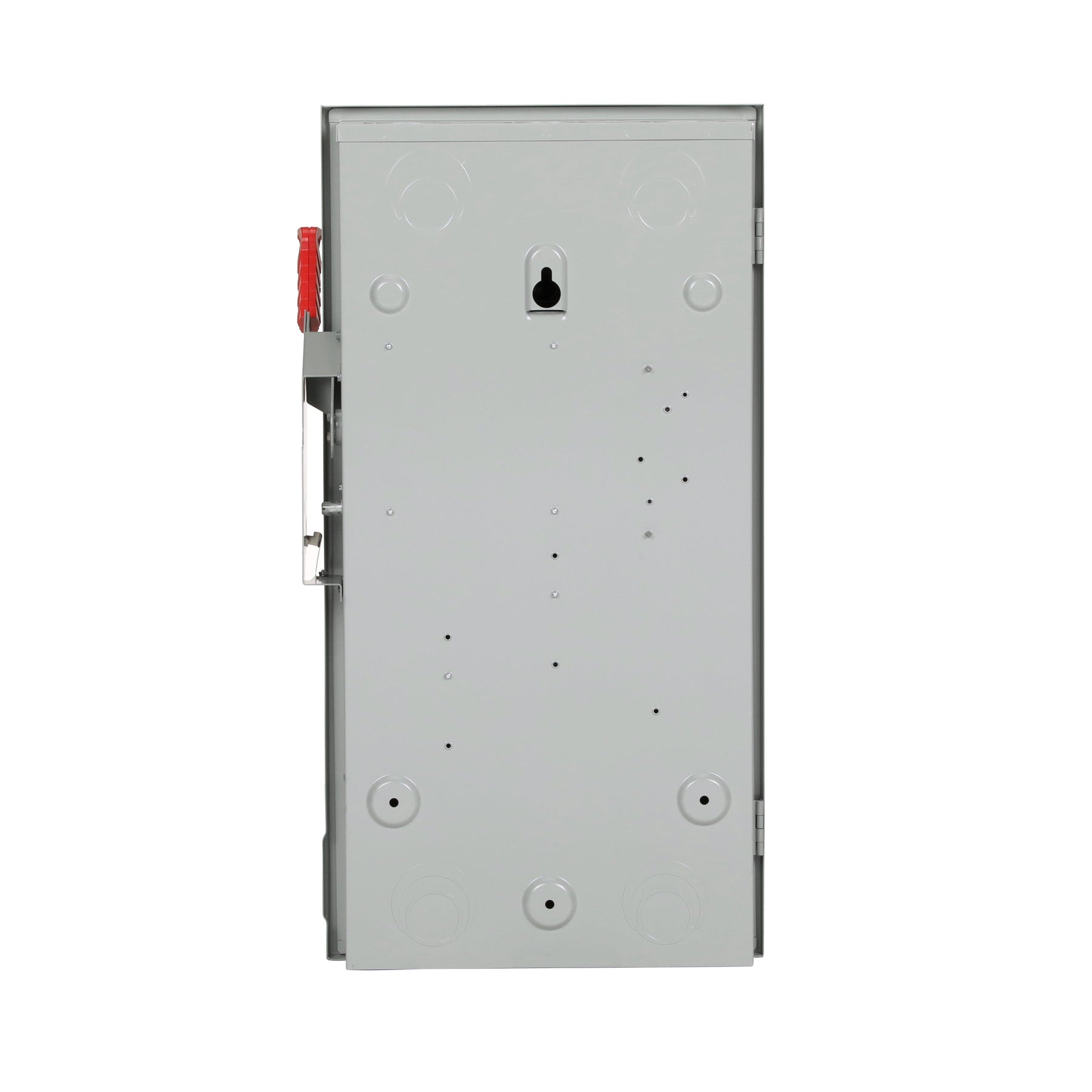

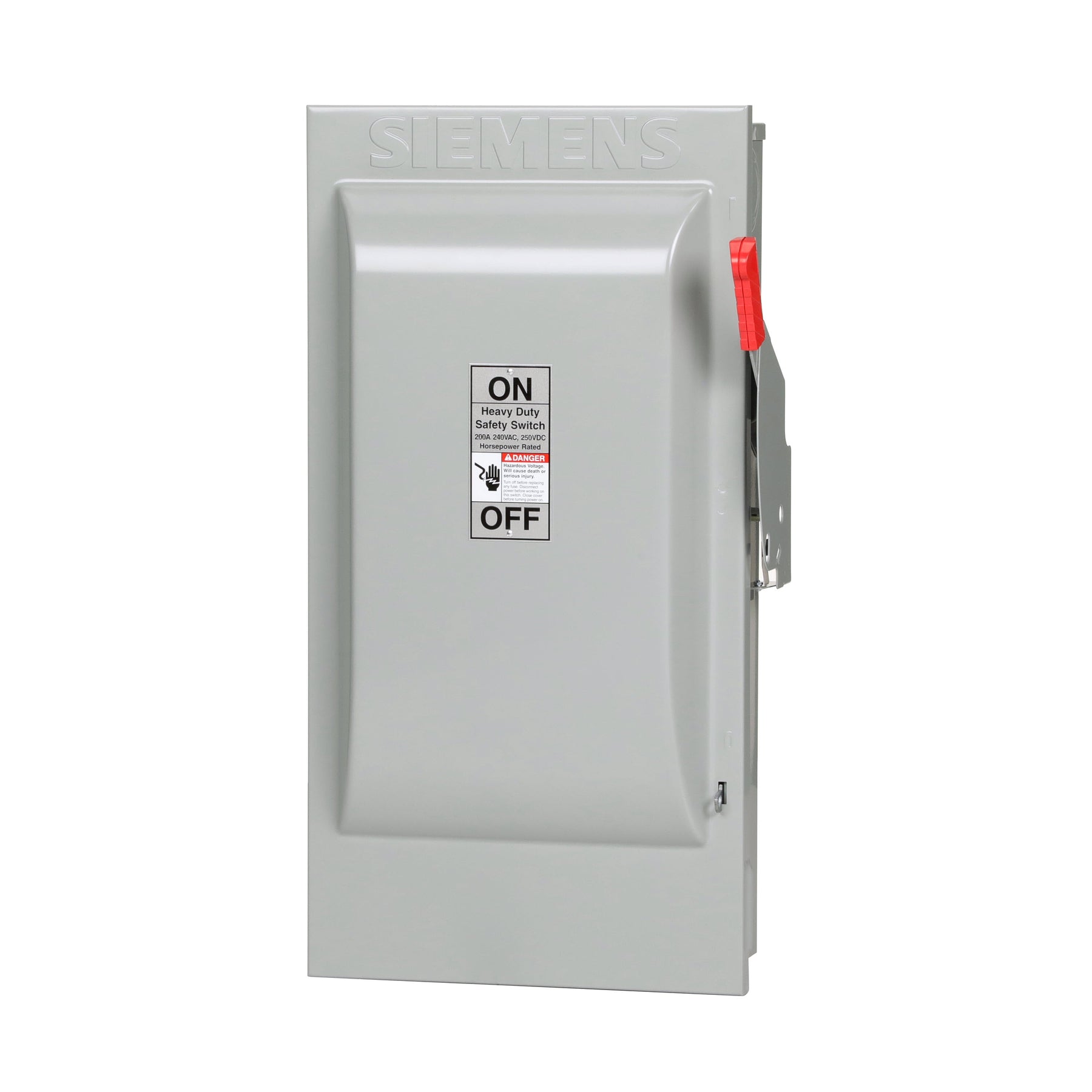

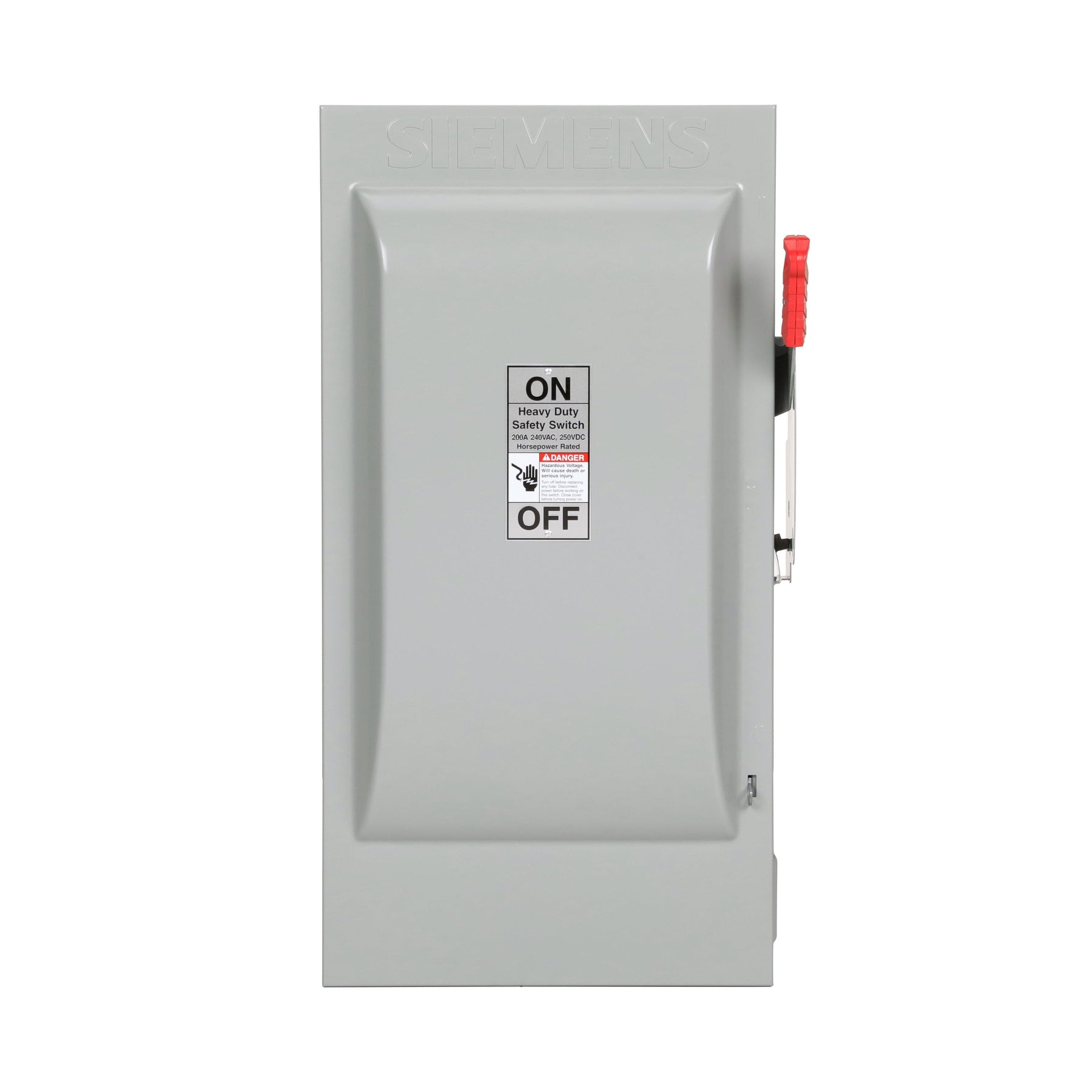

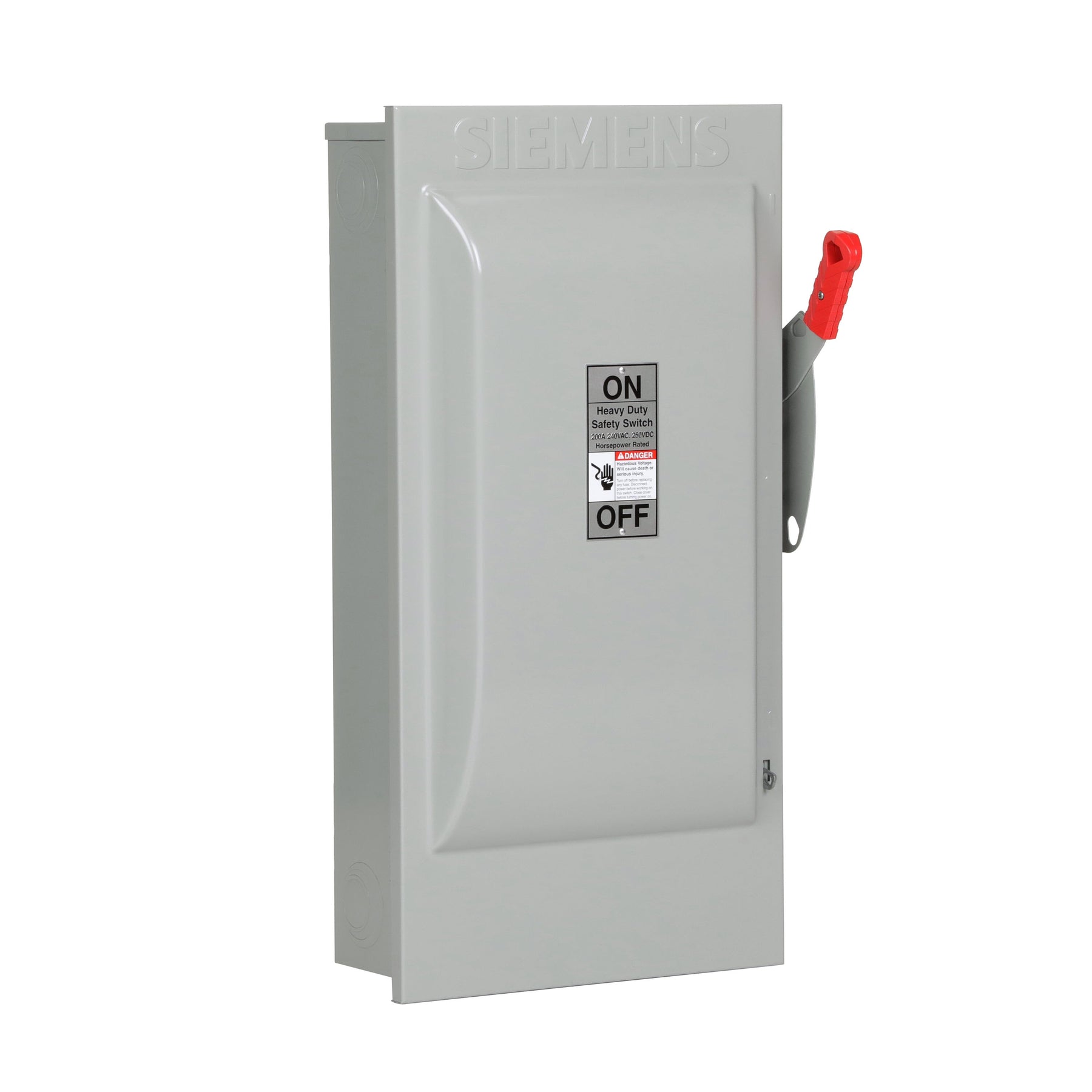

Siemens HF224N - Fusible Safety Disconnect Switch 200A@240V (200kA AIC, NEMA 1)

Siemens HF224N is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. This 200A rated switch operates at 240V AC with a high interrupting capacity of 200kA, providing robust short-circuit protection. The unit features a compact NEMA 1 enclosure measuring 14.7 x 31.1 inches and weighing 57 lb, constructed for durable performance in demanding environments. UL listed certification ensures compliance with industry safety standards, while compatibility with MHP frames facilitates straightforward integration into existing electrical systems. Typical applications include industrial control panels, motor control centers, and power distribution systems requiring secure load disconnection and fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch, VBII Series
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: 14.7 in x 31.1 in
• Standards: UL listed
• Applications: Industrial control panels, motor control centers, power distribution
• Switch Type: HF
• Configuration: Single
• Poles: 2
• AIC rating: 200kA@240V
• Switch Style: Fusible
• Nema Rating: NEMA 1
• Phase: 1
• Fuse Class: R
• Weight: 57 lb
• Compatible Frames: MHP
• Country of Origin: Mexico

Product Identification

• UPC: 783643150232
• GTIN: 00783643150232
