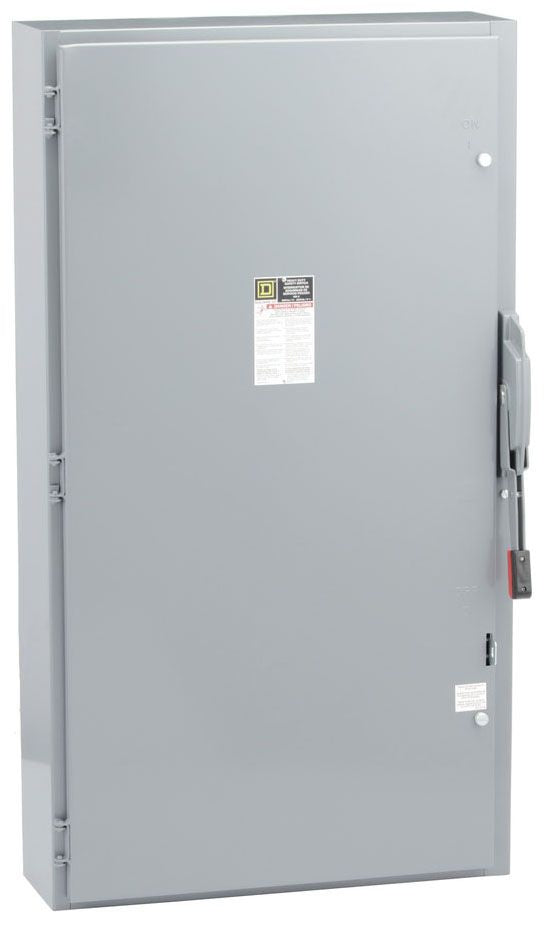

Square D H365 - Fusible Safety Switch 400A 600V (200kA AIC, NEMA 1)

Square D H365 is a heavy-duty fusible safety switch designed for reliable circuit protection and isolation in industrial power distribution systems. This 400A rated disconnect switch operates at 600V AC with a 200kA interrupting capacity, providing robust short-circuit protection through Class R fuses. The NEMA 1 enclosed unit features a three-pole single configuration housed in a substantial 27.63" x 10.13" x 50.25" steel enclosure weighing 76.2 lb, engineered for demanding industrial environments. UL listed certification ensures compliance with rigorous safety standards, while the design accommodates copper or aluminum conductors from AWG 1/0 to 750 kcmil. Typical applications include motor control centers, industrial machinery, and main service disconnects where visible circuit isolation and fuse protection are required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Series E, H-type
• Voltage Rating: 600V AC
• Current Rating: 400A
• Dimensions: 27.63 in x 10.13 in x 50.25 in (WxDxH)
• Standards: UL listed
• Applications: Industrial power distribution, motor control centers, main service disconnects
• Switch Type: Safety disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Fuse Class: R
• Wire Size: AWG 1/0 to 750KCmil Copper or Aluminum
• Nema Rating: NEMA 1
• Weight: 76.2 lb
• Enclosure: NEMA 1
• Country of Origin: Mexico

Product Identification

• UPC: 785901482192
• GTIN: 00785901482192
