Square D H364DS - Fusible Disconnect Switch 600V 200A (200kA AIC @600V)
Regular price
$5,402.20
$5,402.20
Regular price
$7,685.00
$7,685.00
Sale price
$5,402.20
$5,402.20
Save $2,282.80
/
- Low stock - 1 item left
- Backordered, shipping soon

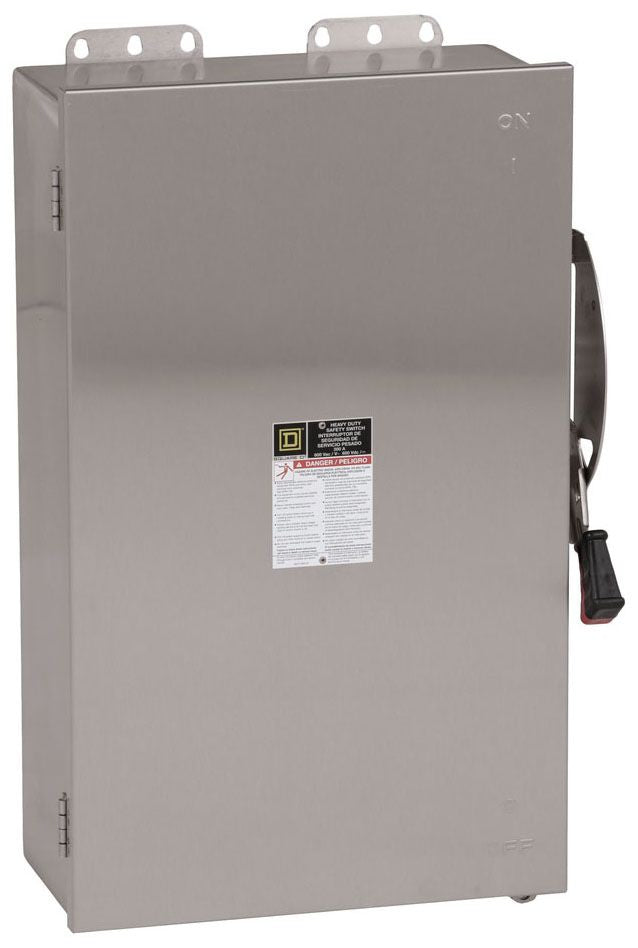

Square D H364DS is a fusible safety disconnect switch designed for industrial power distribution systems requiring high interrupting capacity. This 600V-rated switch handles 200A continuous current with a 200kA@600V AIC rating, featuring a rugged NEMA 4/4X-rated enclosure for harsh environments. The three-pole single-configuration unit measures 488.95 mm (W) × 736.60 mm (H) × 225.55 mm (D) and weighs 25.86 lb, constructed with Class R fuse compatibility for enhanced circuit protection. Compliant with industrial safety standards, it's engineered for use in motor control centers (MD frame compatible) and heavy-duty electrical distribution panels.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch, Series F, Type H construction
- Voltage Rating: 600V AC
- Current Rating: 200A
- Dimensions: 19.25 in (488.95 mm) W × 29 in (736.60 mm) H × 8.88 in (225.55 mm) D
- Standards: NEMA 4/4X enclosure rating
- Applications: Industrial power distribution, motor control centers
- Switch Style: Fusible
- Configuration: Single
- Poles: 3
- Phase: 3
- AIC Rating: 200kA@600V
- Fuse Class: R
- Compatible Frames: MD
- Weight: 25.86 lb
Product Identification
- UPC: 785901023753
- GTIN: 00785901023753
Quote Request
