Square D H363 - Fusible Disconnect Switch 600V/100A (200kA AIC @600V)
Regular price
$647.41
$647.41
Regular price
$1,188.00
$1,188.00
Sale price
$647.41
$647.41
Save $540.59
/
- Low stock - 8 items left
- Backordered, shipping soon

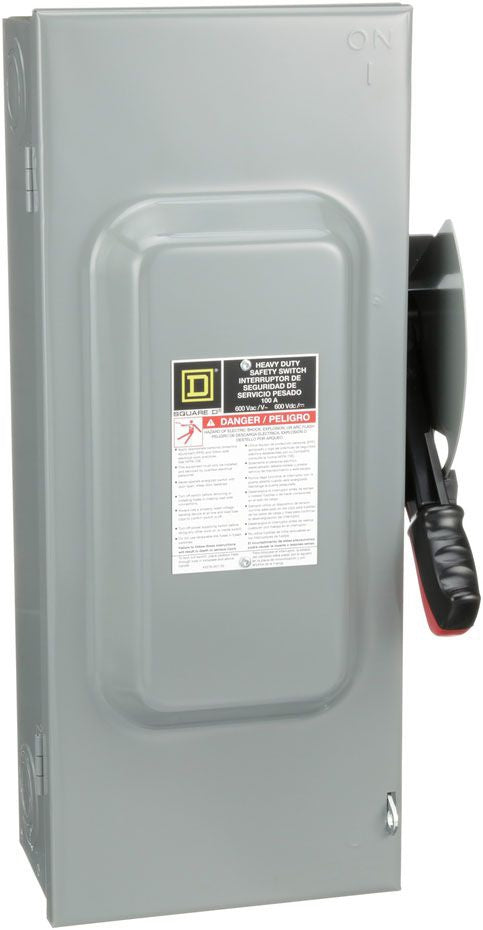

Square D H363 is a fusible safety disconnect switch designed for industrial power distribution protection. This 600V-rated switch handles 100A current loads with a 200kA interrupting capacity, featuring a rugged NEMA 1 enclosure measuring 162.05mm (D) x 260.35mm (W) x 539.75mm (H) and weighing 7.73 lb. Compliant with industry standards for safety disconnects, its 3-pole single configuration with Class R fuse compatibility makes it suitable for three-phase motor control and heavy equipment power isolation in manufacturing facilities.
Key Features & Specifications
Key Features & Specifications
- Type: Fusible disconnect switch, Series F, Type H construction
- Voltage Rating: 600V AC
- Current Rating: 100A
- Dimensions: 6.38" x 10.25" x 21.25" (162.05mm x 260.35mm x 539.75mm)
- Standards: NEMA 1 rated enclosure
- Applications: Three-phase industrial power distribution, motor control centers
- Switch Style: Fusible
- Configuration: Single
- Poles: 3
- Phase: 3
- AIC rating: 200kA@600V
- Fuse Class: R
- Compatible Frames: ED
- Weight: 7.73 lb
- UPC: 785901482253
- GTIN: 00785901482253
