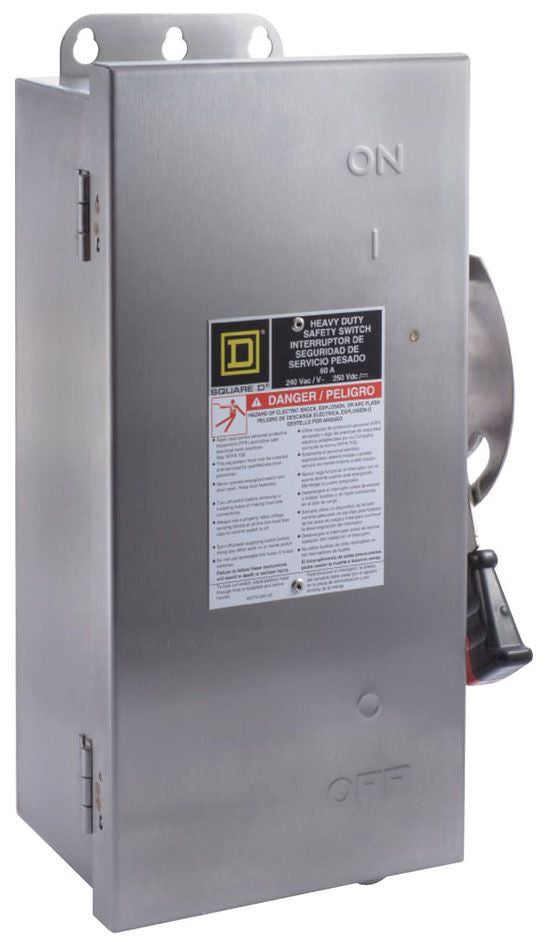

Square D H362SS - Fusible Safety Switch 60A 600V (3-Pole NEMA 4/4X/5/316)

Square D H362SS is a heavy-duty fusible safety switch designed for reliable circuit protection and isolation in industrial applications. This 600VAC, 60A rated disconnect switch features a 200kA interrupting capacity at 600V for robust fault protection in three-phase systems. The switch measures 520.70 mm high × 112.78 mm wide × 78.49 mm deep and weighs 8.89 lb, constructed with Class R fuse compatibility and NEMA 4/4X/5/316 rated enclosure for harsh environments. UL certified and compatible with ED frames, this safety switch accommodates copper conductors from AWG 14 to 3 and aluminum conductors from AWG 12 to 3, meeting industrial safety standards for motor control centers, industrial machinery, and power distribution systems where visible circuit isolation and overload protection are required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Series F, Type H
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 520.70 mm H × 112.78 mm W × 78.49 mm D (20.5 in × 4.44 in × 3.09 in)
• Weight: 8.89 lb
• Standards: UL Certified
• Applications: Industrial machinery, motor control centers, power distribution systems
• Switch Type: Fusible safety switch
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA @ 600V
• Fuse Class: R
• Wire Size: AWG 14-3 copper, AWG 12-3 aluminum
• NEMA Rating: 4/4X/5/316
• Compatible Frames: ED
• Enclosure: NEMA 4/4X/5/316 rated
• Mounting: Industrial panel mounting

Product Identification

• UPC: 785901538721
• GTIN: 00785901538721
