Square D H327NR - Fusible Safety Switch 800A (200kA AIC @600V)
Regular price
$10,268.59
$10,268.59
Regular price
$15,563.00
$15,563.00
Sale price
$10,268.59
$10,268.59
Save $5,294.41
/
- In stock, ready to ship
- Backordered, shipping soon

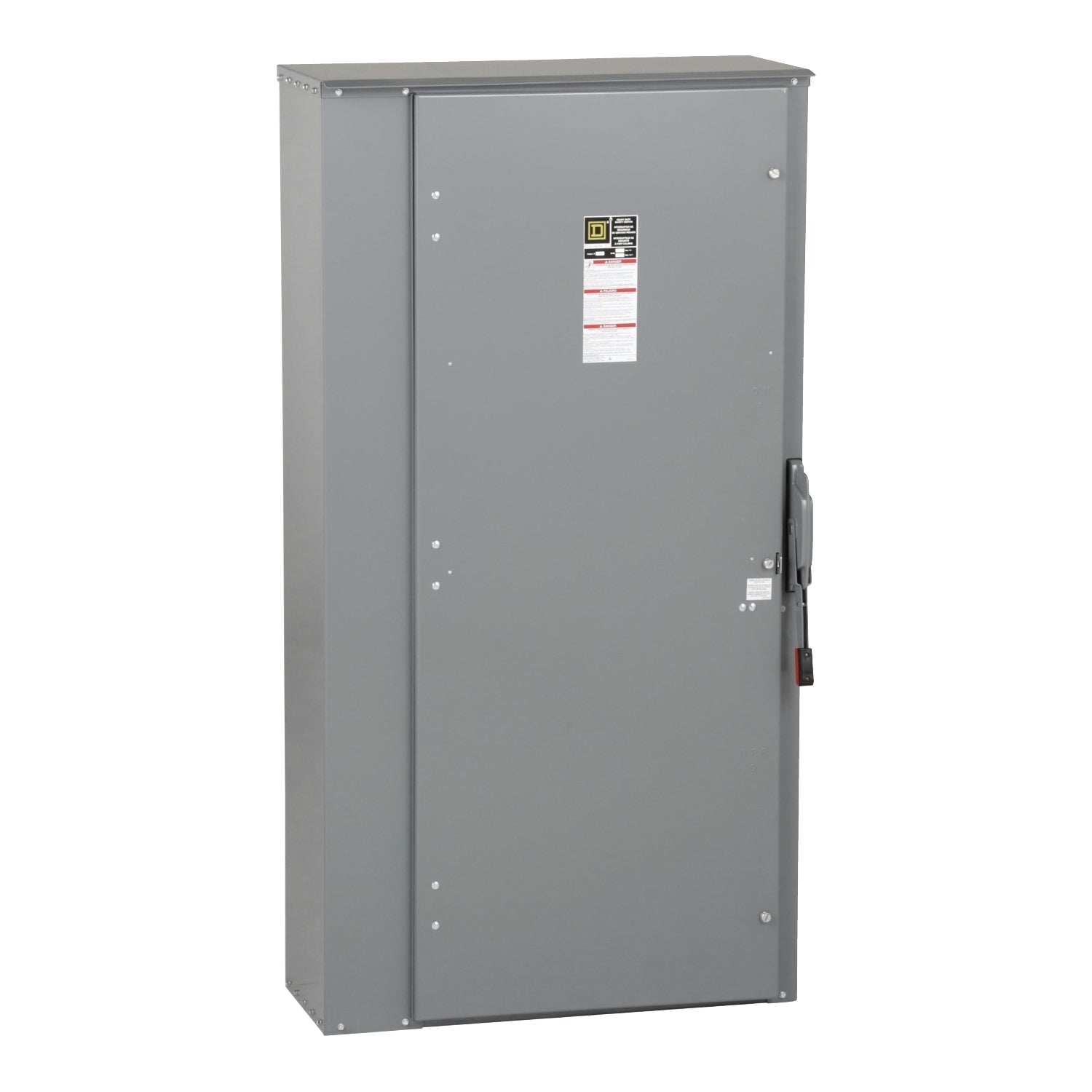

Square D H327NR is a heavy-duty fusible safety switch designed for reliable circuit protection and isolation in industrial power distribution systems. This 800A rated disconnect switch operates at 240V AC/250V DC and features a 200kA interrupting capacity at 600V for robust fault protection. The unit is constructed with a NEMA 3R rated enclosure measuring 36.62" x 17.75" x 69.13" (WxDxH) and weighs 167.83 lb, providing durable outdoor protection against rain and sleet. UL Listed certification ensures compliance with industry safety standards, while compatibility with KP frames facilitates integration into existing Square D systems. Typical applications include main service disconnects, motor control centers, and industrial machinery protection in three-phase power systems.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch with R/L fuse class compatibility
- Voltage Rating: 240V AC/250V DC
- Current Rating: 800A
- Dimensions: 36.62" x 17.75" x 69.13" (WxDxH)
- Standards: UL Listed, NEMA 3R
- Applications: Industrial power distribution, motor control centers, main service disconnects
- Switch Type: Fusible
- Configuration: Single
- Phase: 3
- Poles: 3
- AIC rating: 200kA@600V
- Protection: Circuit isolation and fault protection
- Nema Rating: NEMA 3R
- Compatible Frames: KP
- Wire: 4
- Weight: 167.83 lb
- Country of Origin: United States
Product Identification
- UPC: 78590144240
- GTIN: 00785901442400
