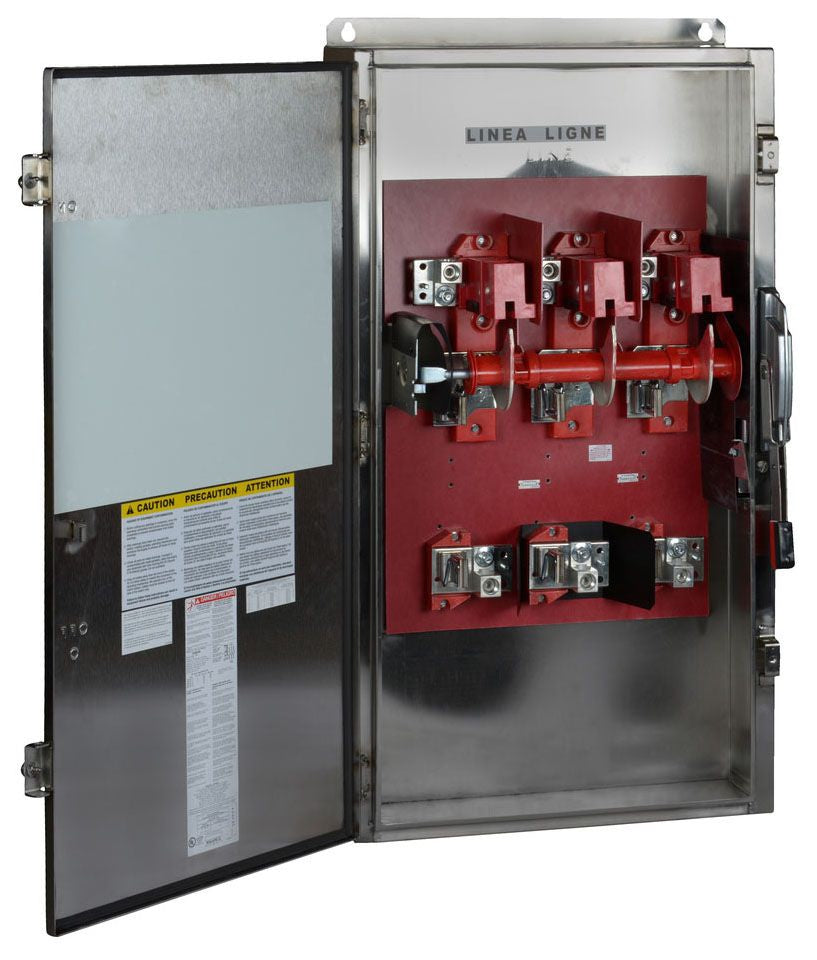

Square D H325DS - Fusible Disconnect Switch 400A 240V (200kA AIC Rating)
Regular price
$10,037.03
$10,037.03
Regular price
$14,961.00
$14,961.00
Sale price
$10,037.03
$10,037.03
Save $4,923.97
/
- In stock, ready to ship
- Backordered, shipping soon
Square D H325DS is a fusible safety disconnect switch designed for industrial power distribution system protection and isolation. This 400A rated disconnect operates at 240V AC with a 200kA interrupting capacity, providing robust circuit protection in demanding environments. The unit features a heavy-duty NEMA 5 enclosure measuring 26.25" x 10.13" x 46.25" (WxDxH) and weighs 81.65 lb, constructed for industrial durability. UL listed certification ensures compliance with North American safety standards, making it suitable for three-phase industrial applications including motor control centers, machinery protection, and main distribution panel disconnects where reliable circuit isolation is critical.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: H-series fusible safety disconnect switch with Class R fuse compatibility
- Voltage Rating: 240V AC
- Current Rating: 400A
- Dimensions: 26.25 in x 10.13 in x 46.25 in (WxDxH)
- Standards: UL listed
- Applications: Industrial power distribution, motor control centers, machinery protection
- Switch Type: Safety disconnect
- Configuration: Single
- Phase: 3
- Amperage: 400A
- AIC rating: 200kA@240V
- Connection: Fusible
- Poles: 3
- Protection: Circuit isolation and overload protection
- Functions: Safety disconnecting means
- Nema Rating: NEMA 5
- Fuse Class: R
- Weight: 81.65 lb
- Family: Series E
- Country of Origin: Mexico
Product Identification
- UPC: 785901333333
- GTIN: 00785901333333
