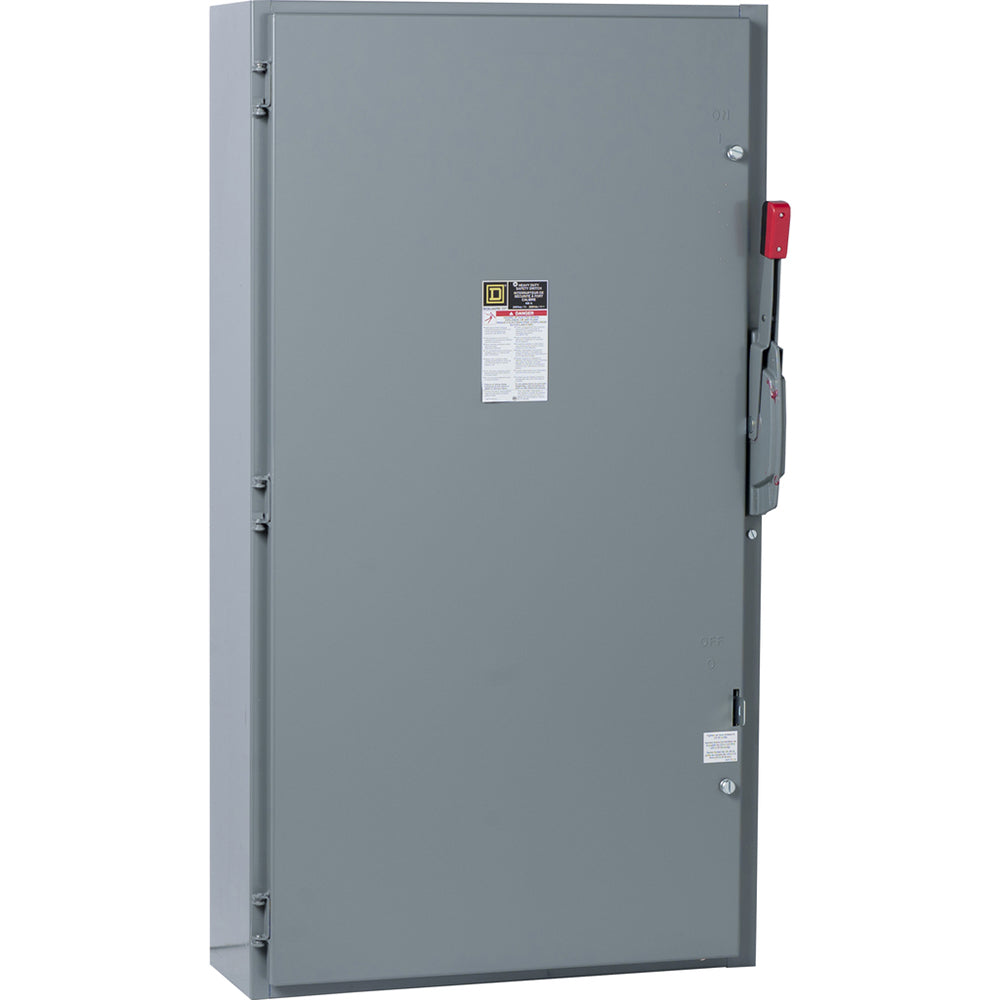

Square D H225 - Fusible Disconnect Switch 400A @ 240V (200kA AIC)

Square D H225 is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed NEMA 1-rated switch handles 240V AC/DC systems with a 400A current rating and 200kA interrupting capacity at 240V. The rugged 27.63" x 10.13" x 50.25" (WxDxH) enclosure houses a single-configuration, 2-pole design with Class R fuse compatibility. Compliant with industrial safety standards, it's engineered for commercial facilities, manufacturing plants, and heavy equipment power control in Series E FAP frame applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch (Series E)
• Voltage Rating: 240V AC/DC
• Current Rating: 400A
• Dimensions: 27.63" x 10.13" x 50.25" (WxDxH)
• Weight: 74.84 lb
• Standards: UL listed, NEMA 1
• Applications: Industrial power distribution, equipment control
• Switch Style: Fusible
• Configuration: Single
• Poles: 2
• AIC rating: 200kA@240V
• Phase: 1
• Fuse Class: R
• Compatible Frames: FAP
• Country of Origin: Mexico

Product Identification

• UPC: 78590145044
• GTIN: 00785901000000
