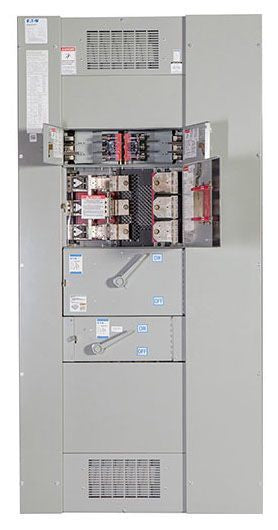

Cutler Hammer FDPWT3223 - Fusible Safety Switch 3P 100A (200kA AIC @240V)

Cutler Hammer FDPWT3223 is a panel-mounted fusible safety switch designed for industrial power distribution protection. This 3-pole, 240V AC switch features a 100A current rating and 200kA interrupting capacity at 240V, housed in a NEMA 1-rated enclosure with dual/twin configuration for enhanced circuit isolation. The rugged 35 lb construction utilizes R, H, and K-class fuse compatibility and integrates with TJJ frames for modular installations. UL-listed and compliant with industrial safety standards, it provides reliable overcurrent protection for three-phase motor control centers, manufacturing equipment, and heavy machinery power feeds.

Key Features & Specifications

• Type: Fusible safety switch, panel mount, Type FDP family
• Voltage Rating: 240V AC
• Current Rating: 100A
• Configuration: Dual/Twin
• Poles: 3
• Phase: 3
• AIC rating: 200kA@240V
• Fuse Class: R, H, K
• Nema Rating: 1
• Switch Style: Fusible
• Compatible Frames: TJJ
• Weight: 35 lb
• Standards: UL listed, industrial safety compliant
• Applications: Motor control centers, industrial machinery, three-phase power distribution
