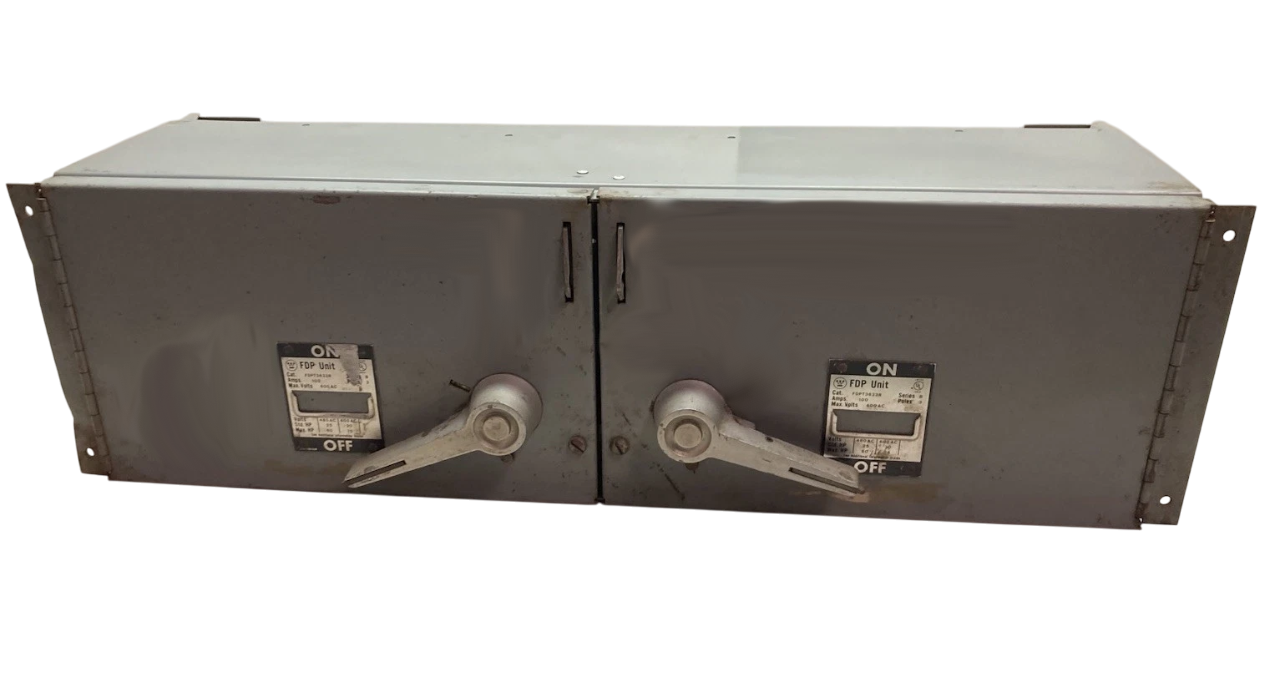

Cutler Hammer FDPT3633 - Fusible Safety Switch 600V 100A (3-Pole Dual Configuration)

Cutler Hammer FDPT3633 is a panel-mounted fusible safety switch designed for industrial power distribution protection. This 3-phase switch provides reliable circuit interruption with a 600V voltage rating and 100A current capacity, featuring a dual/twin configuration for enhanced operational flexibility. Constructed with a NEMA 1 enclosure and weighing 35 lb, the unit offers robust physical protection while maintaining compatibility with HED frames. The switch meets industry standards with its 200kA interrupting rating at 480V and accommodates Class R, H, and K fuses for comprehensive circuit protection. Typical applications include industrial control panels, manufacturing equipment, and commercial power distribution systems where reliable disconnecting means are required.

Key Features & Specifications

• Type: Panel-mounted fusible safety switch, dual/twin configuration
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: Compatible with HED frames
• Standards: NEMA 1 enclosure rating
• Applications: Industrial control panels, power distribution systems, manufacturing equipment
• Switch Type: Fusible safety switch
• Configuration: Dual/Twin
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA @ 480V
• Fuse Class: R, H, K
• NEMA Rating: 1
• Weight: 35 lb
• Compatible Frames: HED
• Item Subcategory: Panel Mount
• Family: Type FDP
• Manufacturer: Eaton
