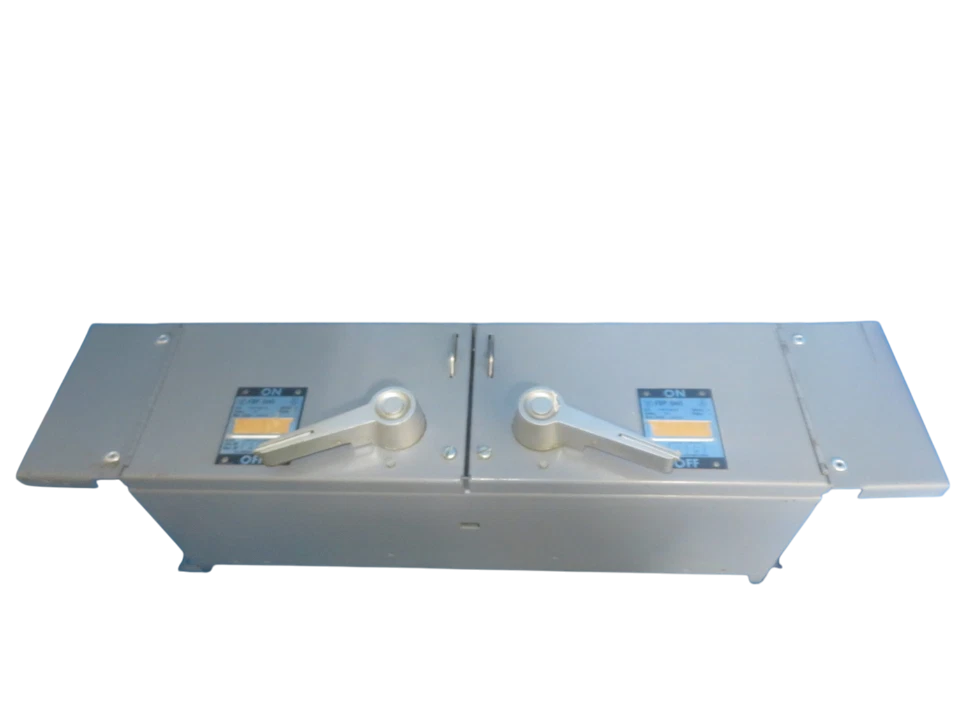

Cutler Hammer FDPT3611R - Fusible Disconnect Switch 600V 30A (200kA AIC @480V)

The Cutler Hammer FDPT3611R is a fusible safety disconnect switch designed for industrial circuit protection and isolation. This 600V AC rated switch handles 30A current with a 200kA interrupting capacity at 480V, providing robust short-circuit protection. The dual/twin configuration features three poles in a NEMA 1 enclosure weighing 25 lb, constructed for heavy-duty industrial applications. It complies with industry standards and is compatible with HED frames for seamless integration into existing systems. Typical applications include motor control centers, industrial machinery, and power distribution panels where reliable circuit isolation and fuse protection are required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, dual/twin configuration
• Voltage Rating: 600V AC
• Current Rating: 30A
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA @ 480V
• Fuse Class: R, H, K
• Configuration: Dual/Twin
• Switch Style: Fusible
• NEMA Rating: 1
• Compatible Frames: HED
• Weight: 25 lb
• Family: Type FDP
• Model Type: FDPT
• Manufacturer: Eaton
• Item Subcategory: Disconnect
