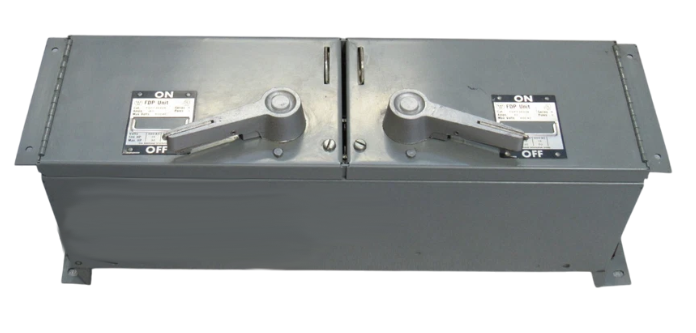

Cutler Hammer FDPT3223R - Fusible Disconnect Switch 100A@240V (200kA AIC)

Cutler Hammer FDPT3223R is a fusible disconnect switch designed for industrial power distribution protection. This panel-mounted device features a 240V AC rating with 100A current capacity and 200kA interrupting rating at 240V, housed in a NEMA 1 enclosure with dual/twin configuration. The rugged 35 lb assembly utilizes Class R, H, and K fuses across three poles in a 3-phase system, compatible with ED frames for seamless integration. It meets industry standards for heavy-duty circuit protection in manufacturing facilities, data centers, and commercial power systems requiring high fault current interruption.

Key Features & Specifications

• Type: Fusible disconnect switch, panel mount
• Voltage Rating: 240V AC
• Current Rating: 100A
• Configuration: Dual/Twin
• Poles: 3
• Phase: 3
• AIC Rating: 200kA@240V
• Fuse Class: R, H, K
• NEMA Rating: 1
• Compatible Frames: ED
• Weight: 35 lb
• Switch Style: Fusible
• Family: Type FDP
• Subcategory: Panel Mount
