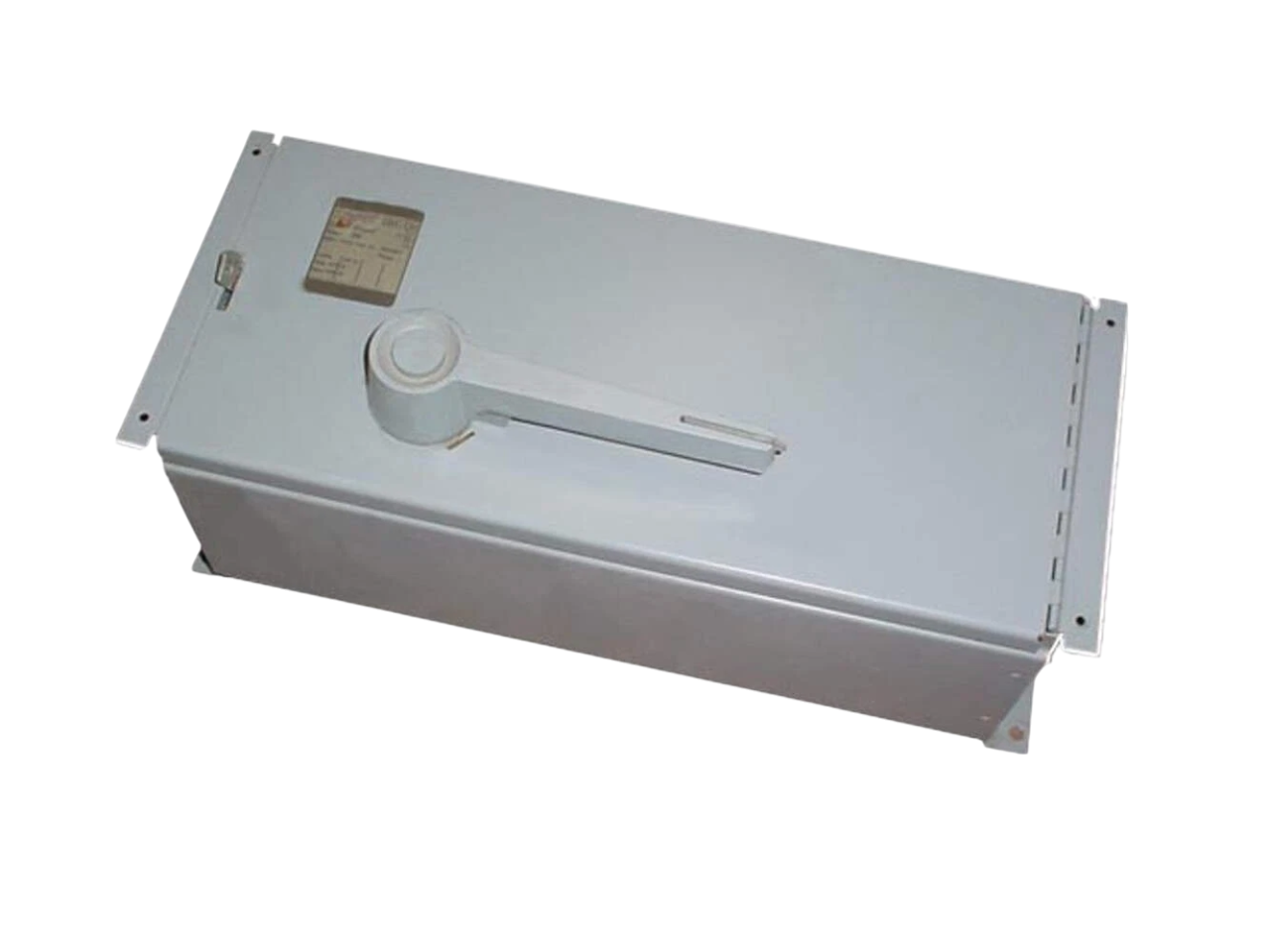

Cutler Hammer FDPS324R - Fusible Safety Switch 200A 240V (3-Pole NEMA 1)

Cutler Hammer FDPS324R is a fusible safety switch designed for industrial circuit protection and isolation in three-phase electrical systems. The switch features a 240V AC voltage rating with 200A current capacity and 200kA interrupting rating at 240V for reliable fault protection. Constructed with a NEMA 1 enclosure and weighing 42 lb, this three-pole single configuration unit provides robust physical protection. It complies with industry standards for fusible disconnect switches and accepts Class R, H, and K fuses. Typical applications include industrial machinery, motor control centers, and power distribution panels where safe circuit isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, three-pole single configuration
• Voltage Rating: 240V AC
• Current Rating: 200A
• Dimensions: NEMA 1 enclosure, 42 lb weight
• Standards: Industrial safety switch standards
• Applications: Industrial machinery, motor control centers, power distribution panels
• Switch Type: Fusible disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@240V
• Fuse Class: R, H, K
• Nema Rating: 1
• Compatible Frames: SEDA
• Family: Type FDP
• Type: FDPS

Product Identification

• GTIN: 00786674153531
