Square D DTU322 - Non-Fusible Disconnect Switch 60A 3-Pole (200kA AIC @240V)

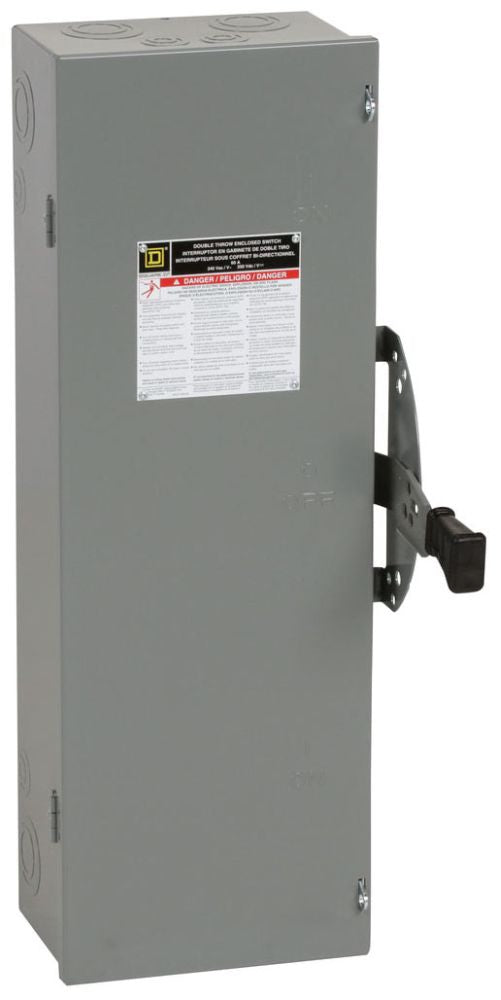

Square D DTU322 is a non-fusible disconnect switch designed for safe electrical isolation in industrial power distribution systems. It provides reliable circuit interruption with a 60A current rating and 240V AC voltage rating for three-phase applications. The unit features a compact NEMA 1 enclosure measuring 11.96" W × 6.93" D × 29.94" H and weighs 15.99 lb, constructed for durable industrial service. UL listed and compliant with industry standards, this disconnect offers 200kA AIC rating at 240V for robust short-circuit protection. Typical applications include motor control centers, industrial machinery, and power distribution panels where safe maintenance isolation is required.

Key Features & Specifications

• Type: Non-fusible disconnect switch, Series F family, DTU type
• Voltage Rating: 240V AC
• Current Rating: 60A
• Dimensions: 11.96 in × 6.93 in × 29.94 in (W×D×H)
• Standards: UL listed, NEMA 1 rated
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Non-Fusible
• Configuration: Single
• Phase: 3
• Poles: 3
• AIC rating: 200kA@240V
• Protection: Circuit interruption and isolation
• Nema Rating: NEMA 1
• Compatible Frames: RLF
• Weight: 15.99 lb
• Country of Origin: United States

Product Identification

• UPC: 785901308362
• GTIN: 00785901308362
