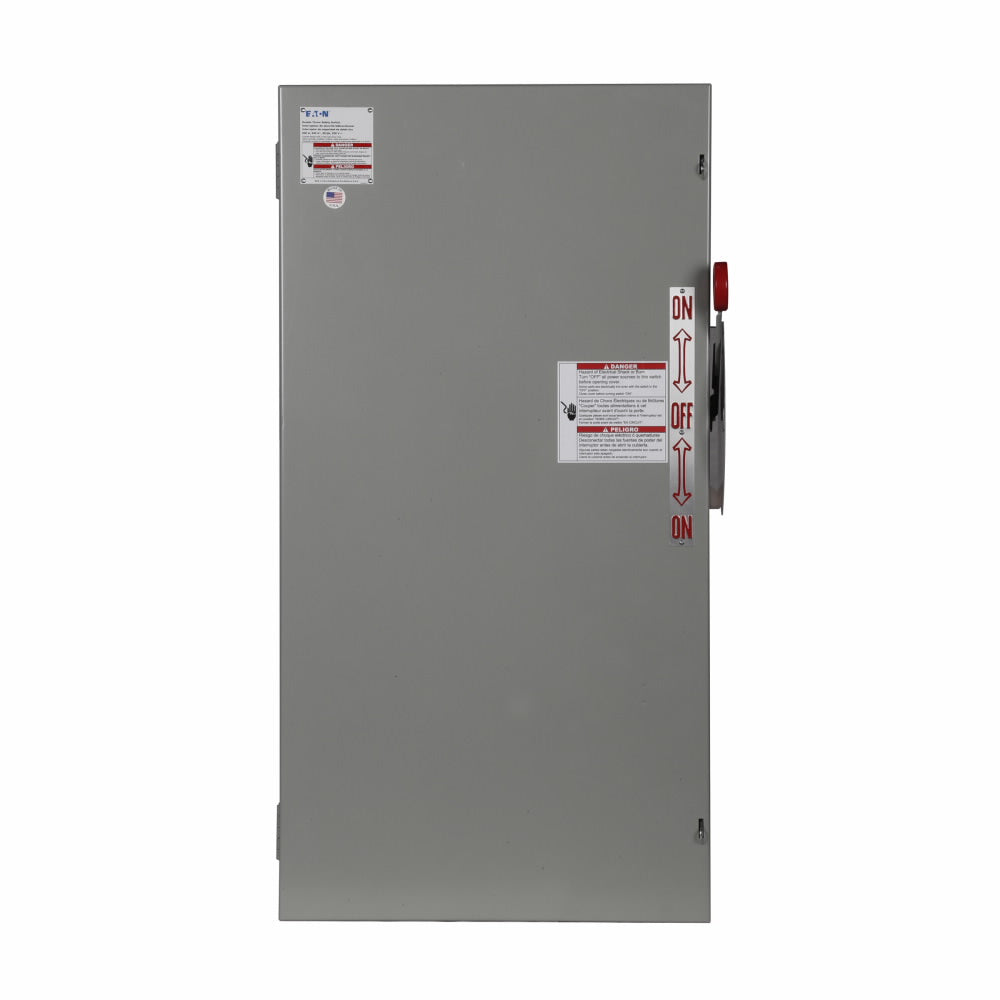

Cutler Hammer DT365UGK - Non-Fusible Disconnect Switch 400A@600V (100kA AIC)

Cutler Hammer DT365UGK is a heavy-duty non-fusible disconnect switch designed for industrial power distribution systems requiring reliable circuit isolation. It features a 600V voltage rating and 400A current capacity with a 100kA@600V AIC rating for robust short-circuit protection. The unit's rugged NEMA 1 enclosure measures 23.08 x 12.5 x 53.8 inches (WxDxH) and weighs 200 lb, constructed with double-throw configuration and three-pole operation. UL-listed and compatible with SELA frames, this switch meets stringent safety standards for three-phase applications in manufacturing plants, data centers, and utility substations.

Key Features & Specifications

• Type: DT Series non-fusible disconnect switch
• Voltage Rating: 600V AC
• Current Rating: 400A
• Dimensions: 23.08 x 12.5 x 53.8 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers
• Configuration: Double throw
• Poles: 3
• AIC rating: 100kA@600V
• Switch Style: Non-Fusible
• Nema Rating: NEMA 1
• Phase: 3
• Weight: 200 lb
• Compatible Frames: SELA

Product Identification

• UPC: 782113696430
• GTIN: 00782114000000
