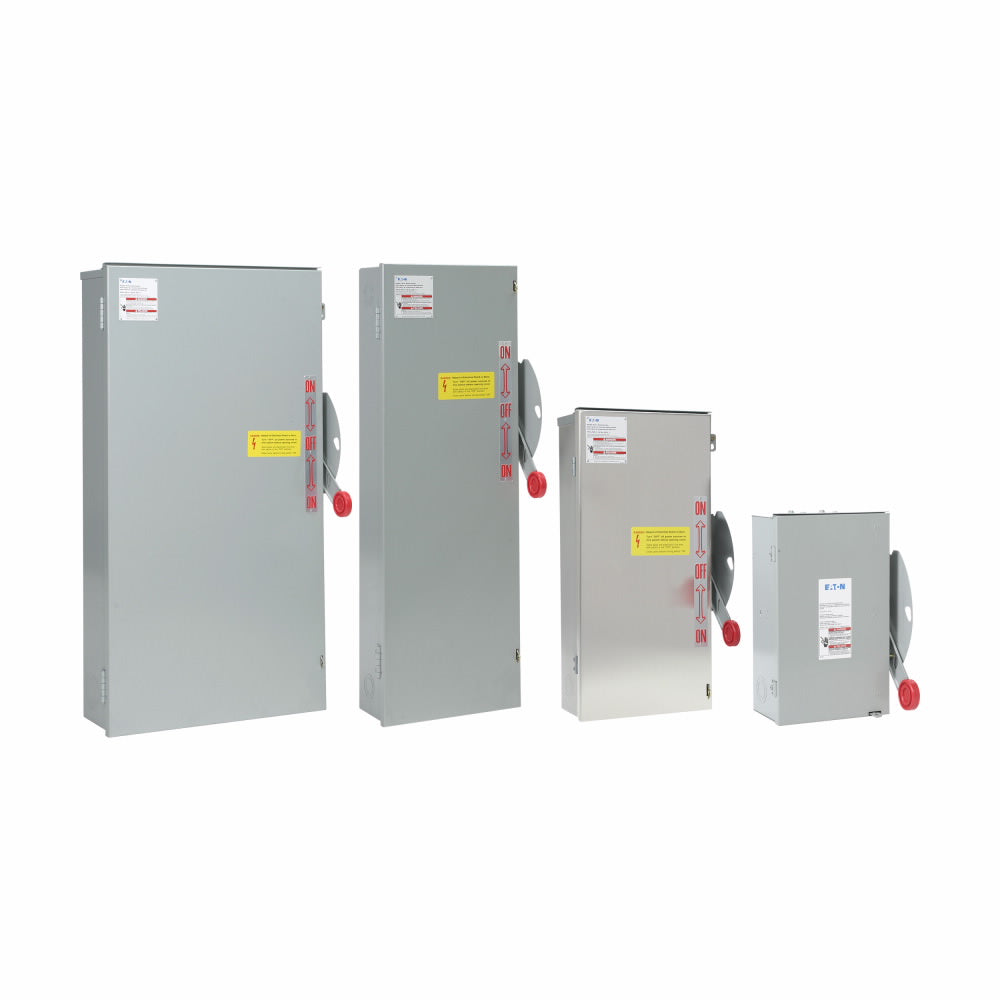

Cutler Hammer DT361UWK - Industrial Disconnect Switch 600V/30A (100kA AIC NEMA 4X)

Cutler Hammer DT361UWK is a heavy-duty industrial disconnect switch designed for safe power isolation in high-capacity electrical systems. This UL-listed, NEMA 4X-rated unit features a 600V AC voltage rating and 30A current capacity with a 100kA interrupting rating at 600V for robust circuit protection. The corrosion-resistant enclosure measures 11.62" W x 11.44" D x 27.83" H and weighs 110 lb, housing a double-throw, 3-pole configuration compatible with TEB frames. Compliant with UL safety standards, this American-made switch is engineered for demanding applications including motor control centers, industrial machinery, and power distribution systems where reliable disconnection is critical.

Key Features & Specifications

• Type: DT Series industrial safety disconnect switch
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 11.62" x 11.44" x 27.83" (WxDxH)
• Standards: UL Listed, NEMA 4X
• Applications: Motor control, power distribution, heavy machinery
• Configuration: Double-throw
• Poles: 3
• AIC rating: 100kA@600V
• Compatible Frames: TEB
• Weight: 110 lb
• Country of Origin: United States

Product Identification

• UPC: 782113747941
• GTIN: 00782114000000
