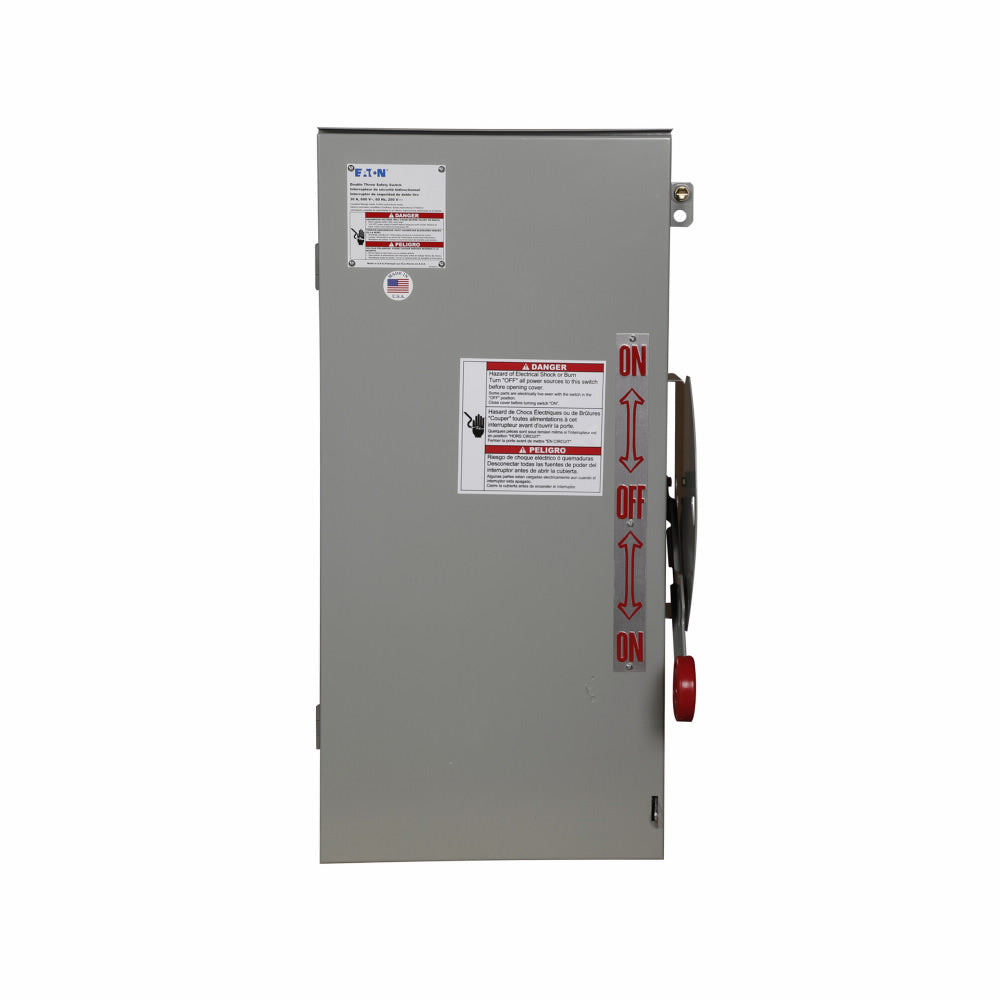

Cutler Hammer DT361URK - Safety Disconnect Switch 30A 600V (3-Pole NEMA 3R)

Cutler Hammer DT361URK is a heavy-duty safety disconnect switch designed for reliable circuit isolation and protection in industrial power distribution systems. This UL Listed device features a 600V voltage rating and 30A current capacity with a 100kA@600V interrupting rating for robust fault protection. The switch measures 11.95 x 11.19 x 25.02 inches (WxDxH) with a 54 lb construction and features a NEMA 3R rated enclosure suitable for outdoor applications. Certified to UL standards, this three-phase disconnect is engineered for industrial compliance and safety requirements. Typical applications include motor control centers, industrial machinery, and power distribution panels where secure isolation is critical.

Key Features & Specifications

• Type: DT Series safety disconnect switch with double configuration operation
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 11.95 in x 11.19 in x 25.02 in (WxDxH)
• Standards: UL Listed, NEMA 3R
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Safety Disconnect
• Configuration: Double
• Poles: 3
• AIC rating: 100kA@600V
• Phase: 3
• Nema Rating: NEMA 3R
• Compatible Frames: SGLA
• Weight: 54 lb
• Certification: UL Listed
• Country of Origin: United States

Product Identification

• UPC: 782113426365
• GTIN: 00782113426365
