Cutler Hammer DT224FGK - Fusible Disconnect Switch 200A@240V (100kA AIC NEMA 1)
Regular price
$0.00
$0.00
Regular price
$5,925.00
$5,925.00
Sale price
$0.00
$0.00
Save $5,925
/
- In stock, ready to ship
- Backordered, shipping soon

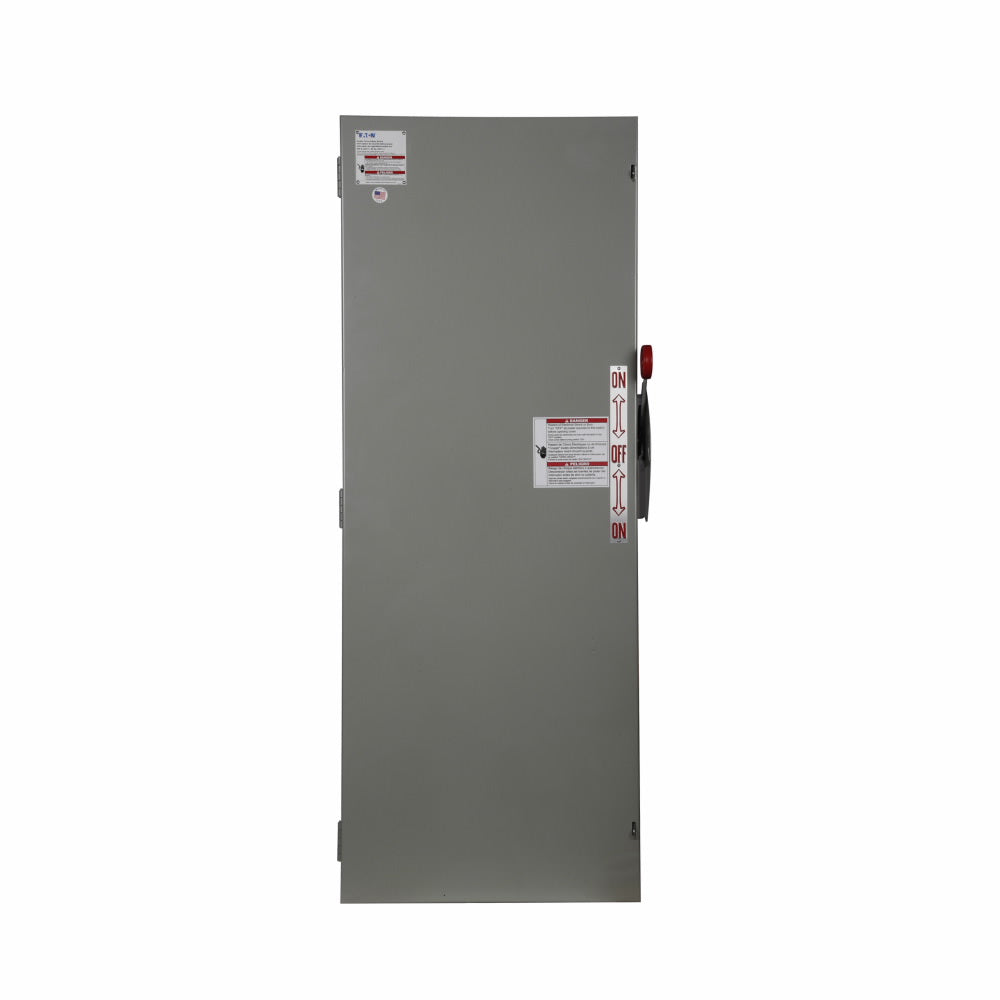

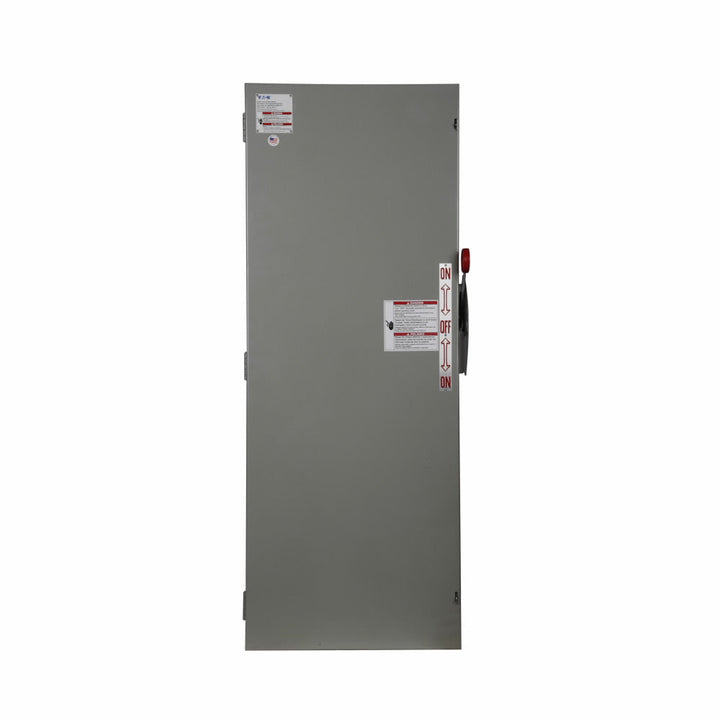

Cutler Hammer DT224FGK is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed NEMA 1-rated switch handles 240V AC systems with a 200A current rating and 100kA interrupting capacity at 240V for reliable circuit isolation. The rugged 145 lb enclosure measures 11.26" W x 19.15" D x 51.36" H with Class R fuse compatibility and single-configuration 2-pole operation. Engineered to meet UL standards, it's compatible with TEB frames for industrial facilities requiring high-fault current protection in motor control centers and power distribution panels.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch (DT Series)
- Voltage Rating: 240V AC
- Current Rating: 200A
- Dimensions: 11.26 x 19.15 x 51.36 inches (WxDxH)
- Standards: UL Listed, NEMA 1
- Applications: Industrial power distribution, motor control centers
- Configuration: Single
- Poles: 2
- AIC rating: 100kA@240V
- Fuse Class: R
- Phase: 1
- Weight: 145 lb
- Compatible Frames: TEB
- Country of Origin: United States
Product Identification
- UPC: 782113614007
- GTIN: 00782114000000
