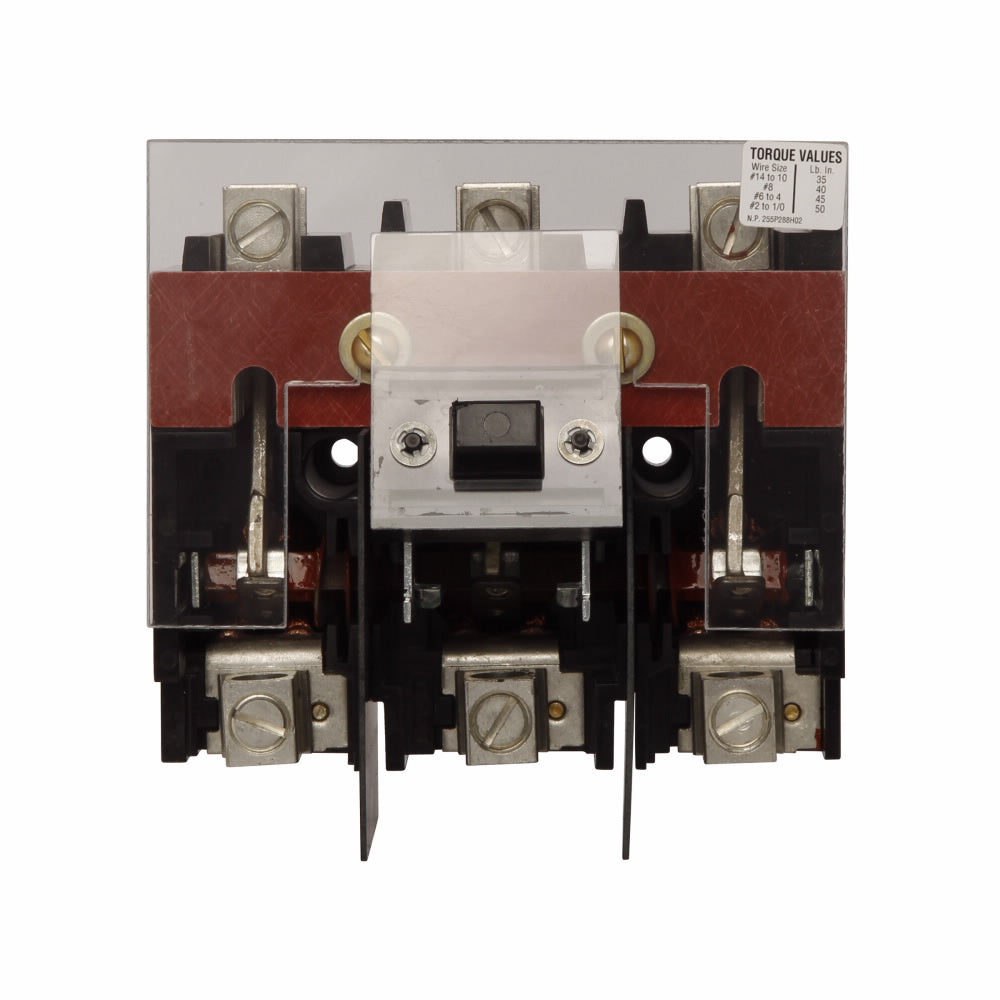

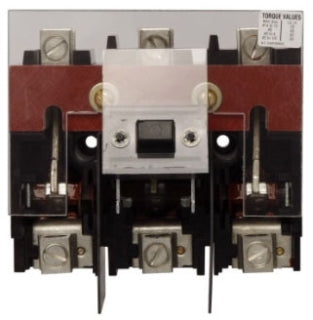

Cutler Hammer DS565R - Fusible Safety Switch 400A 600V (200kA AIC)

Cutler Hammer DS565R is a heavy-duty fusible safety switch designed for reliable circuit isolation and protection in industrial power distribution systems. This 600VAC rated disconnect switch handles 400A continuous current with a 200kA interrupting capacity, providing robust short-circuit protection when used with Class R or J fuses. The unit features a rugged 3-pole single configuration construction weighing 15 lb, engineered for demanding industrial environments. It carries both CSA Certified and UL Recognized certifications, ensuring compliance with North American safety standards. Typical applications include motor control centers, industrial machinery, and power distribution panels where safe maintenance and overload protection are critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch, 3-pole single configuration
• Voltage Rating: 600V AC
• Current Rating: 400A
• Dimensions: Compatible with ED frames
• Standards: CSA Certified, UL Recognized
• Applications: Industrial power distribution, motor control centers, machinery protection
• Switch Type: Safety disconnect
• Configuration: Single
• AIC rating: 200kA@600V
• Phase: 3-phase
• Poles: 3
• Protection: Fusible (Class R, J)
• Certification: CSA Certified, UL Recognized
• Compatible Frames: ED
• Switch Style: Fusible
• Weight: 15 lb
• Country of Origin: Mexico
• Family: DS
• Item Subcategory: Disconnect
• Section: Switch Mechanisms

Product Identification

• UPC: 782114289143
• GTIN: 00782114289143
