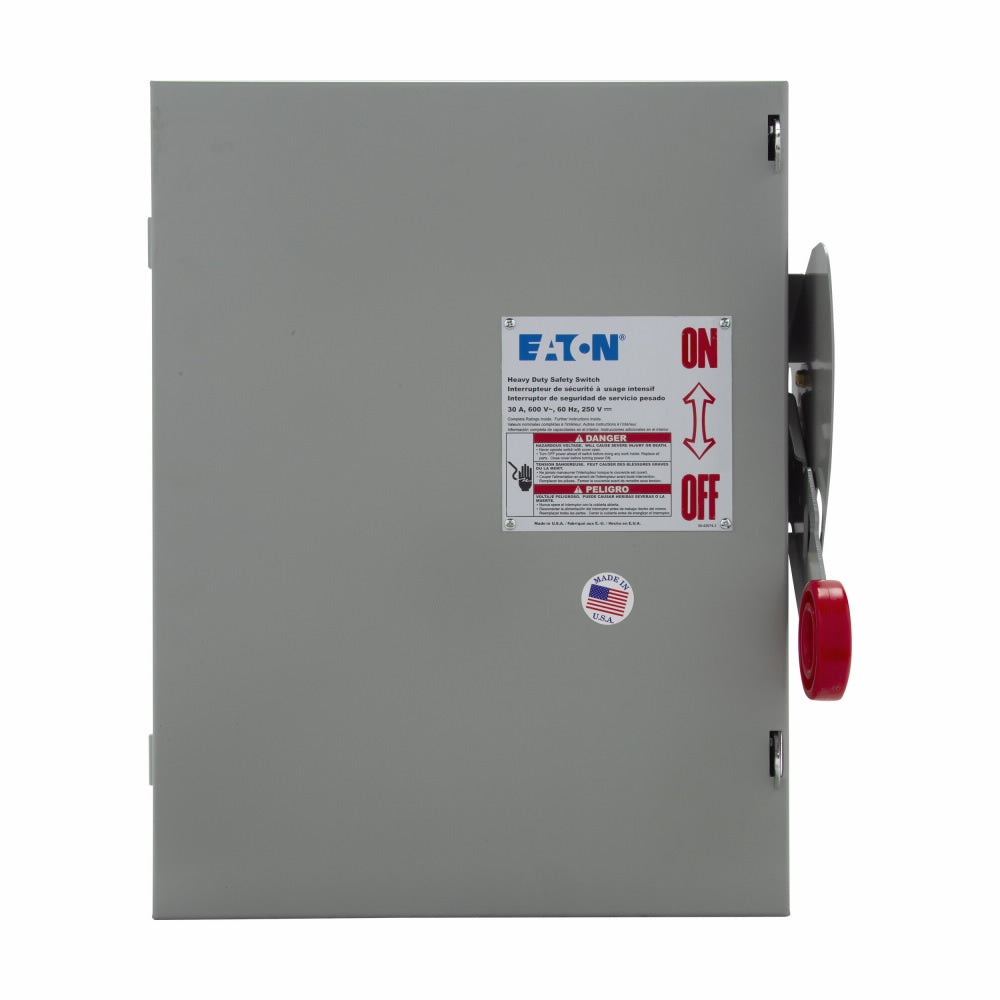

Cutler Hammer DH461UGK - Non-Fusible Disconnect Switch 600V 30A (200kA AIC @600V)

Cutler Hammer DH461UGK is a non-fusible disconnect switch designed for industrial power distribution systems requiring 600V protection. The UL-listed switch handles 30A current with a 200kA interrupting capacity at 600V in a compact 12.93" x 9.89" x 15.81" NEMA 1 enclosure weighing 37 lb. Its 4-pole single configuration meets rigorous safety standards for three-phase applications, featuring robust construction for motor control centers and heavy equipment disconnects.

Key Features & Specifications

• Type: Non-fusible disconnect switch, DH Series
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 12.93 x 9.89 x 15.81 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control
• Configuration: Single
• Poles: 4
• AIC rating: 200kA@600V
• Switch Style: Non-Fusible
• Nema Rating: NEMA 1
• Phase: 3
• Weight: 37 lb
• Country of Origin: United States

Product Identification

• UPC: 782113205557
• GTIN: 00782113000000
