Cutler Hammer DH368NRK - Fusible Safety Switch 1200A 600V (200kA AIC 3-Pole)
Regular price
$73,462.53
$73,462.53
Regular price
$31,810.00
$31,810.00
Sale price
$73,462.53
$73,462.53
Save $-41,652.53
/
- In stock, ready to ship
- Backordered, shipping soon

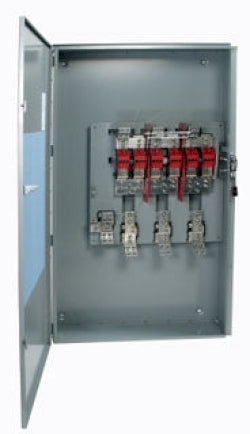

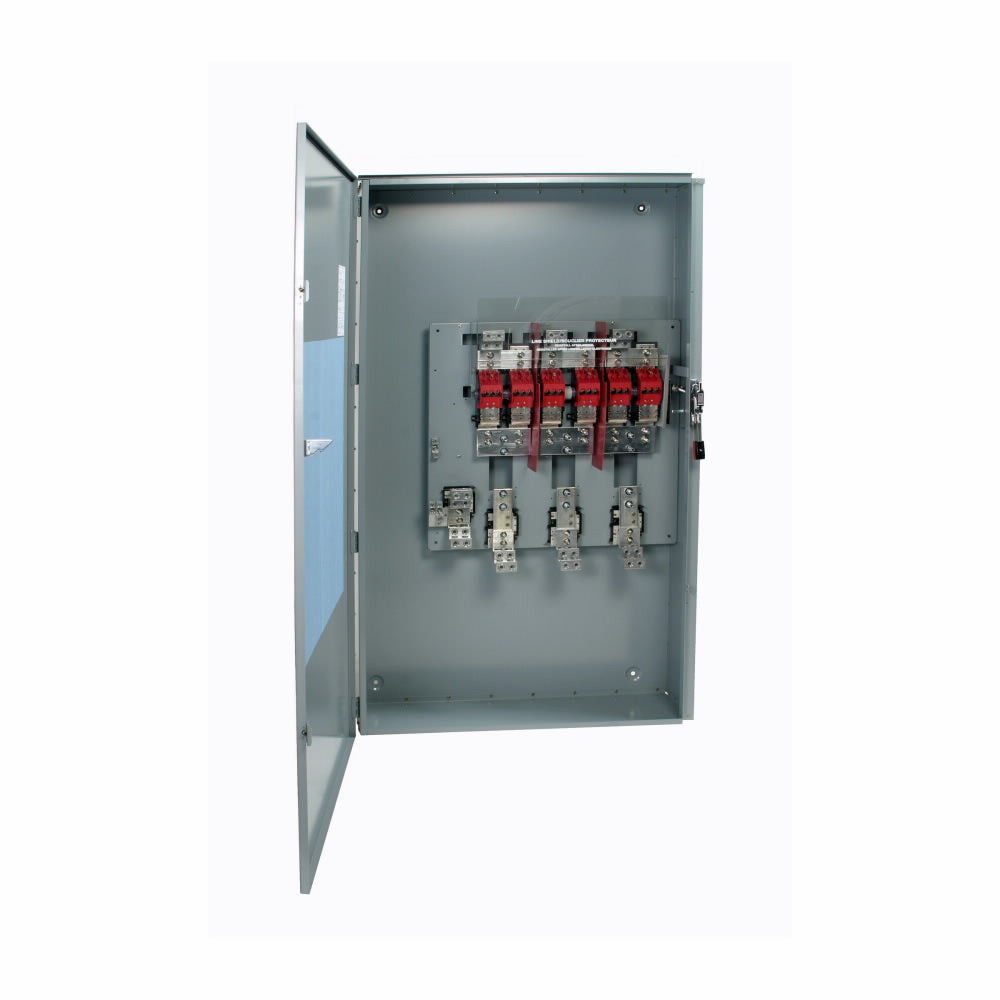

Cutler Hammer DH368NRK is a heavy-duty fusible safety switch designed for industrial power distribution system isolation and protection. This UL Listed disconnect switch features a 600V voltage rating and 1200A current capacity for robust electrical control in three-phase applications. The unit's substantial construction measures 48" x 72" x 21" (WxDxH) and weighs 530 lb, built with NEMA 3R rated enclosure for outdoor weather resistance. Certified to UL standards, this switch provides 200kA interrupting capacity at 600V for reliable fault protection. Typical applications include industrial plant main disconnects, large motor control centers, and heavy machinery power distribution systems requiring Class R fuse protection.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch, DH Series
- Voltage Rating: 600V AC
- Current Rating: 1200A
- Dimensions: 48 in x 72 in x 21 in (WxDxH)
- Standards: UL Listed, NEMA 3R
- Applications: Industrial power distribution, motor control centers, heavy machinery
- Switch Type: Safety disconnect
- Configuration: Single
- Poles: 3
- Phase: 3
- AIC rating: 200kA@600V
- Fuse Class: R
- Nema Rating: 3R
- Weight: 530 lb
- Country of Origin: United States
Product Identification
- UPC: 782114313046
- GTIN: 00782114313046
