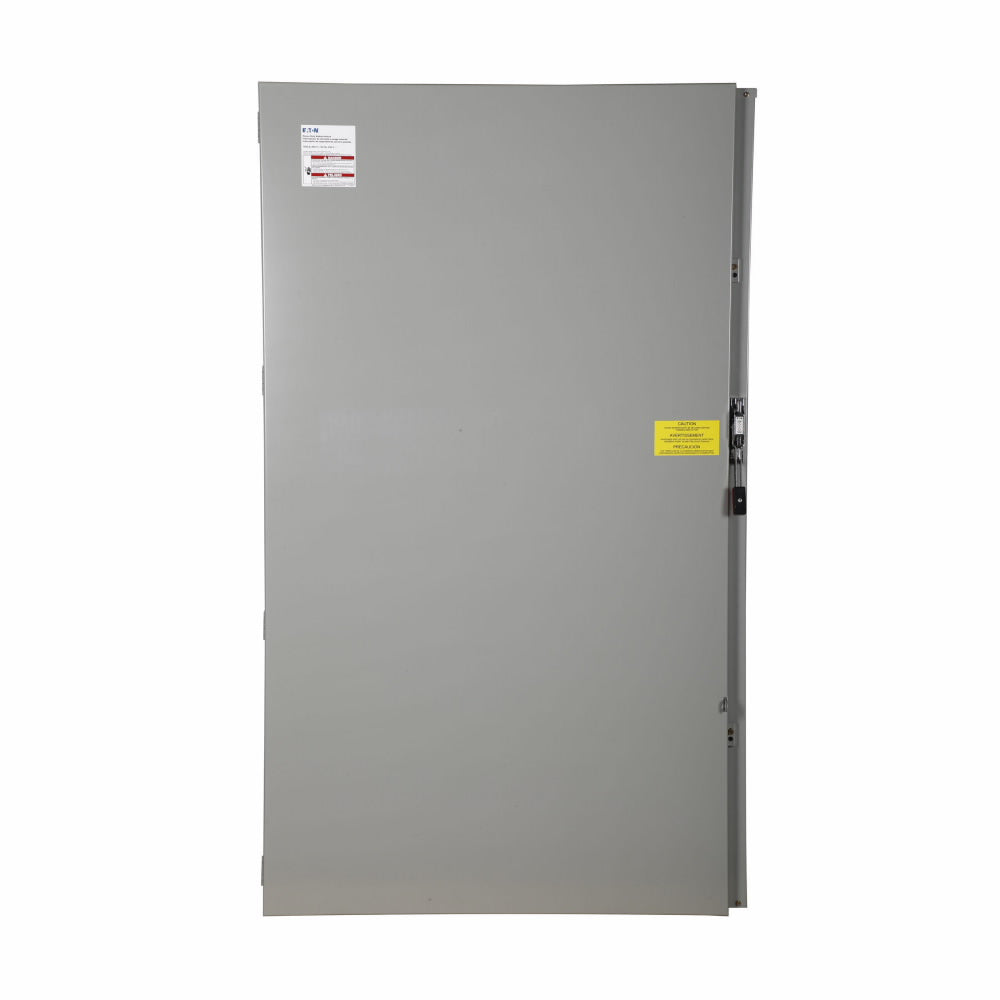

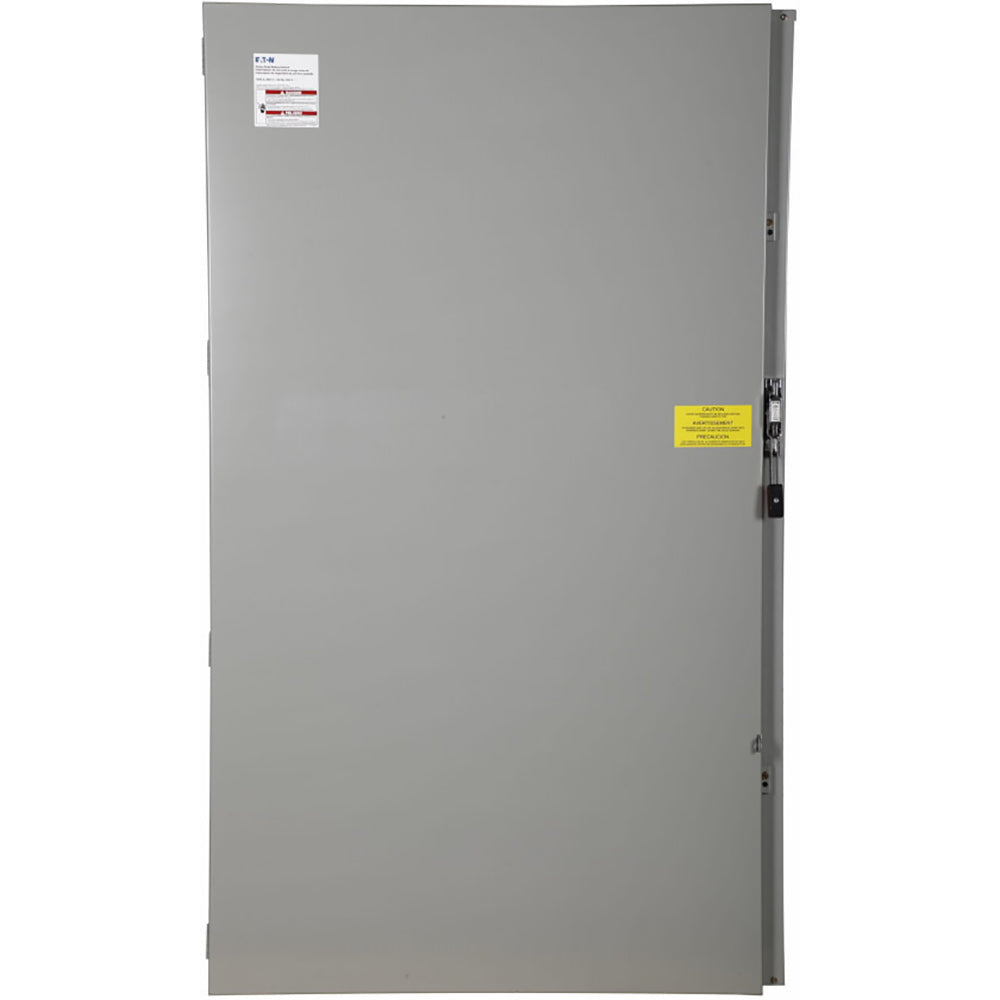

Cutler Hammer DH368NGK - Fusible Safety Switch 1200A 600V (NEMA 4X Enclosure)

Cutler Hammer DH368NGK is a heavy-duty fusible safety switch designed for reliable circuit protection and isolation in industrial power distribution systems. This disconnect switch operates at 600V AC with a 1200A current rating, providing robust electrical protection in demanding environments. The unit features a NEMA 4X rated enclosure measuring 48 x 72 x 21 inches (WxDxH) and weighs 530 lb, constructed for durability in harsh conditions. UL Listed certification ensures compliance with industry safety standards, while the 200kA interrupting rating at 600V delivers superior fault current protection. Typical applications include industrial plants, manufacturing facilities, and commercial power distribution systems requiring secure circuit isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch with R-class fuse compatibility
• Voltage Rating: 600V AC
• Current Rating: 1200A
• Dimensions: 48 in x 72 in x 21 in (WxDxH)
• Standards: UL Listed, NEMA 4X enclosure rating
• Applications: Industrial power distribution, manufacturing facilities, commercial electrical systems
• Switch Type: Fusible safety disconnect
• Configuration: Single unit
• Poles: 3
• AIC rating: 200kA@600V
• Phase: 3-phase
• Fuse Class: R
• Wire: 4 AWG compatible
• Weight: 530 lb
• Certification: UL Listed
• Nema Rating: NEMA 4X

Product Identification

• UPC: 78211431293
• GTIN: 00782114312933
