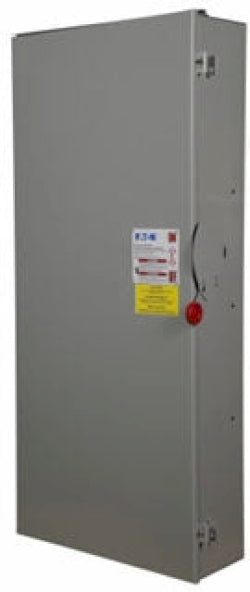

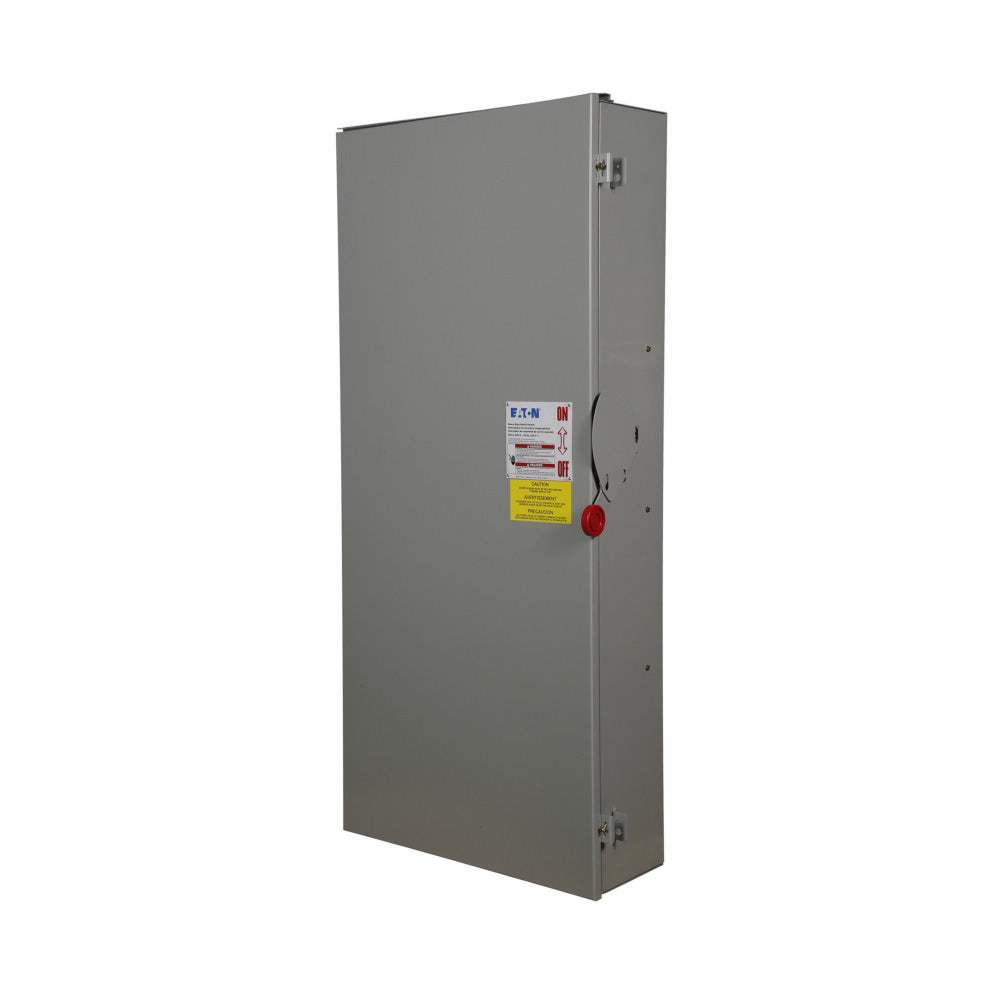

Cutler Hammer DH367FRK is a fusible safety disconnect switch designed for high-current circuit protection in industrial power distribution systems. This UL-listed, NEMA 3R-rated switch features a 600V AC voltage rating and 800A current capacity with a 100kA interrupting rating at 600V for reliable fault protection. The rugged enclosure measures 27.5" W × 57.5" D × 12.38" H and weighs 258 lb, constructed for durability with Class R fuse compatibility and three-pole single configuration. Compliant with UL standards and compatible with TJK frames, this disconnect is engineered for heavy-duty applications including motor control centers, switchgear, and industrial power distribution panels.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch, DH Series
- Voltage Rating: 600V AC
- Current Rating: 800A
- Dimensions: 27.5" W × 57.5" D × 12.38" H
- Standards: UL Listed, NEMA 3R
- Applications: Industrial power distribution, motor control centers
- Switch Style: Fusible
- Configuration: Single
- Poles: 3
- AIC Rating: 100kA@600V
- Fuse Class: R
- Phase: 3
- Compatible Frames: TJK
- Weight: 258 lb
- Country of Origin: United States
Product Identification
- UPC: 782113589732
- GTIN: 00782114000000
