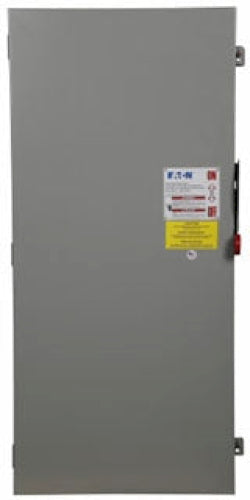

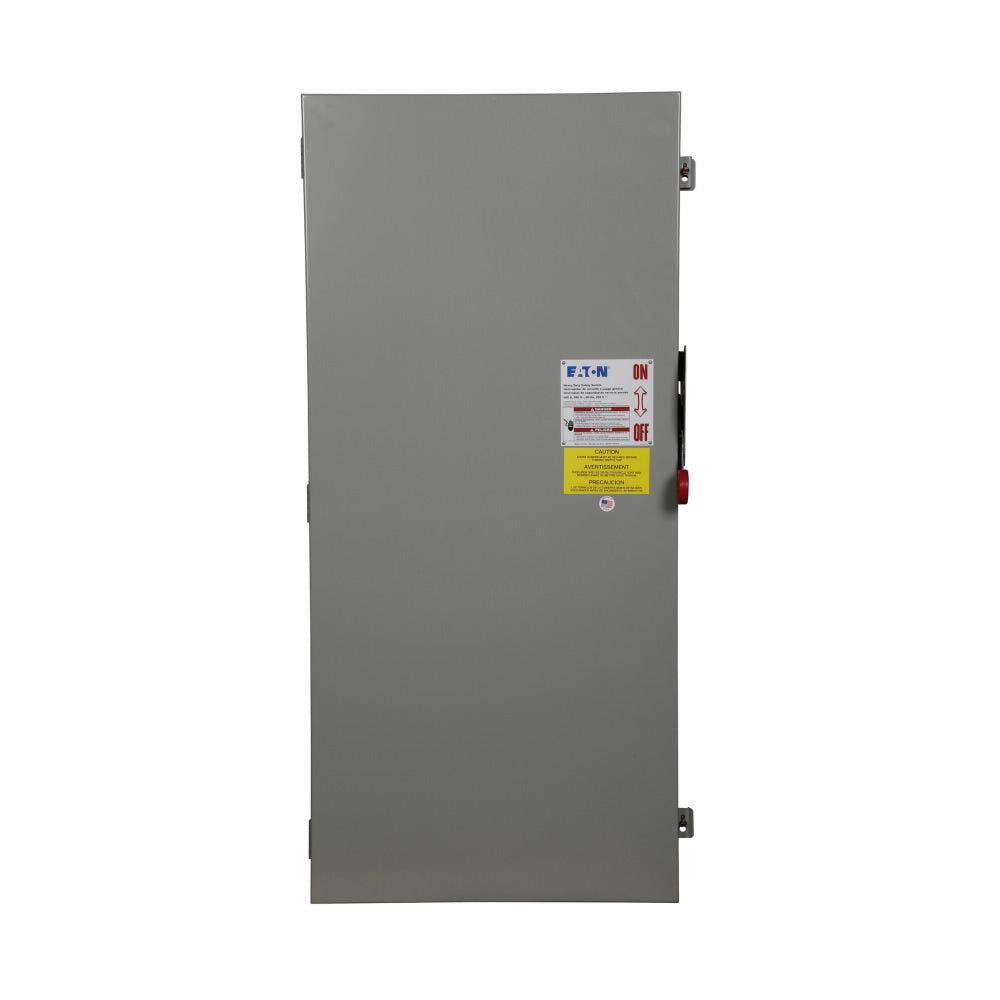

Cutler Hammer DH366UGK - Non-Fusible Disconnect Switch 600A 600V (200kA AIC)

Cutler Hammer DH366UGK is a heavy-duty disconnect switch designed for industrial power distribution systems requiring high fault current protection. This UL-listed, 600V-rated switch features a 600A current capacity and 200kA interrupting rating at 600V, housed in a NEMA 1 enclosure measuring 7.8" x 14.07" x 51.82" (WxDxH) with a robust 240 lb construction. Compliant with NEC 230.62(C) barrier requirements, this 3-phase, 3-pole non-fusible switch is engineered for TB frame compatibility in demanding applications such as motor control centers and main service disconnects.

Key Features & Specifications

• Type: DH Series non-fusible safety disconnect switch
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 7.8" W x 14.07" D x 51.82" H
• Standards: UL Listed, NEC 230.62(C) compliant
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Switch Style: Non-Fusible
• Nema Rating: NEMA 1
• Phase: 3
• Weight: 240 lb
• Compatible Frames: TB
• Country of Origin: United States

Product Identification

• UPC: 782113207575
• GTIN: 00782113000000
