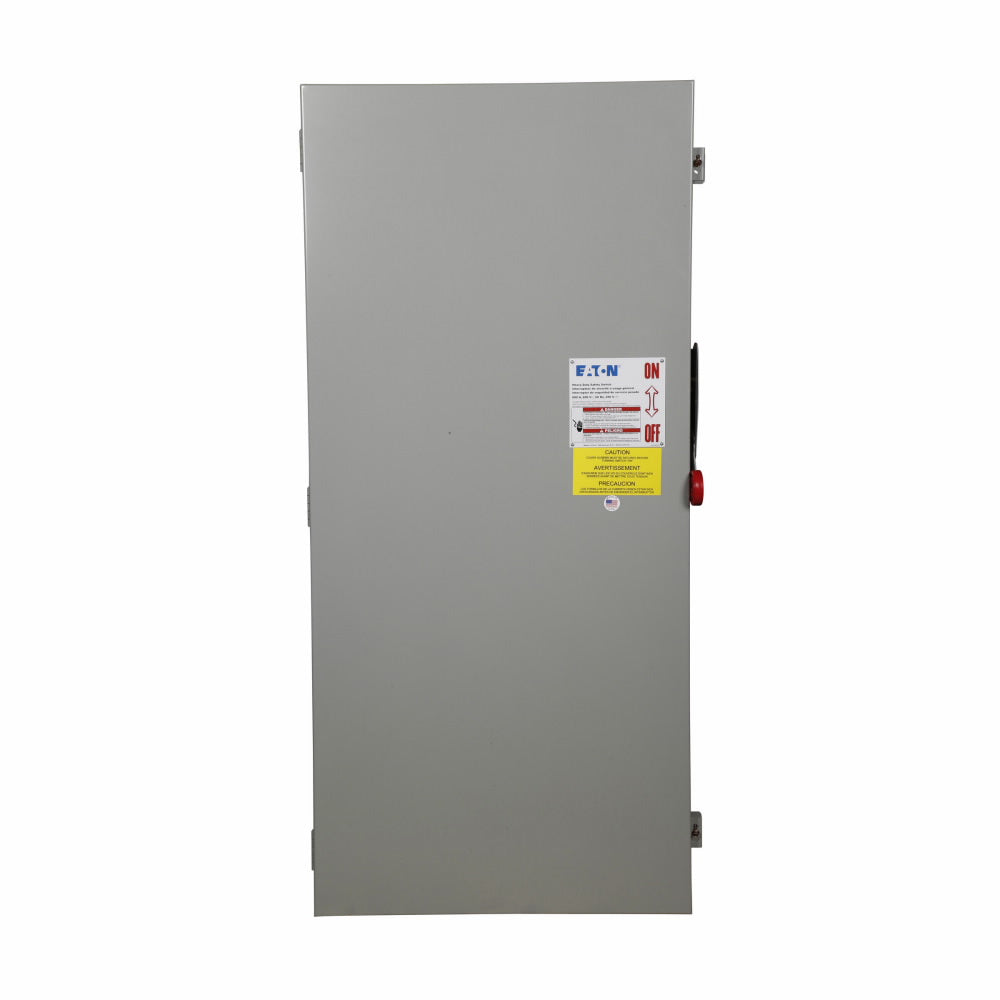

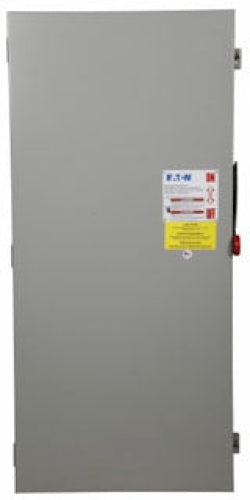

Cutler Hammer DH366FGK - Fusible Disconnect Switch 600A 600V (100kA AIC, NEMA 1)

Cutler Hammer DH366FGK is a fusible safety disconnect switch designed for industrial power distribution system isolation and protection. This 600VAC, 600A rated switch features a 100kA interrupting capacity at 600V for reliable fault protection in demanding environments. The unit is constructed with a NEMA 1 enclosure measuring 27.5" W x 58" D x 12" H and weighs 240 lb, featuring a three-pole single configuration compatible with Class R fuses. It complies with UL listing standards and NEC 230.62 (C) barrier requirements for safe operation. This disconnect is typically applied in industrial facilities, manufacturing plants, and commercial power distribution systems where TED frame compatibility is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series, industrial grade
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 27.5 in x 58 in x 12 in (WxDxH)
• Standards: UL Listed, NEC 230.62 (C) Compliant Barrier
• Applications: Industrial power distribution, manufacturing facilities, commercial electrical systems
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 100kA@600V
• Fuse Class: R
• Nema Rating: NEMA 1
• Compatible Frames: TED
• Weight: 240 lb
• Country of Origin: United States

Product Identification

• UPC: 782113207551
• GTIN: 00782113207551
