Cutler Hammer DH365UDK - Disconnect Switch 400A@600V (100kA AIC NEMA 12)

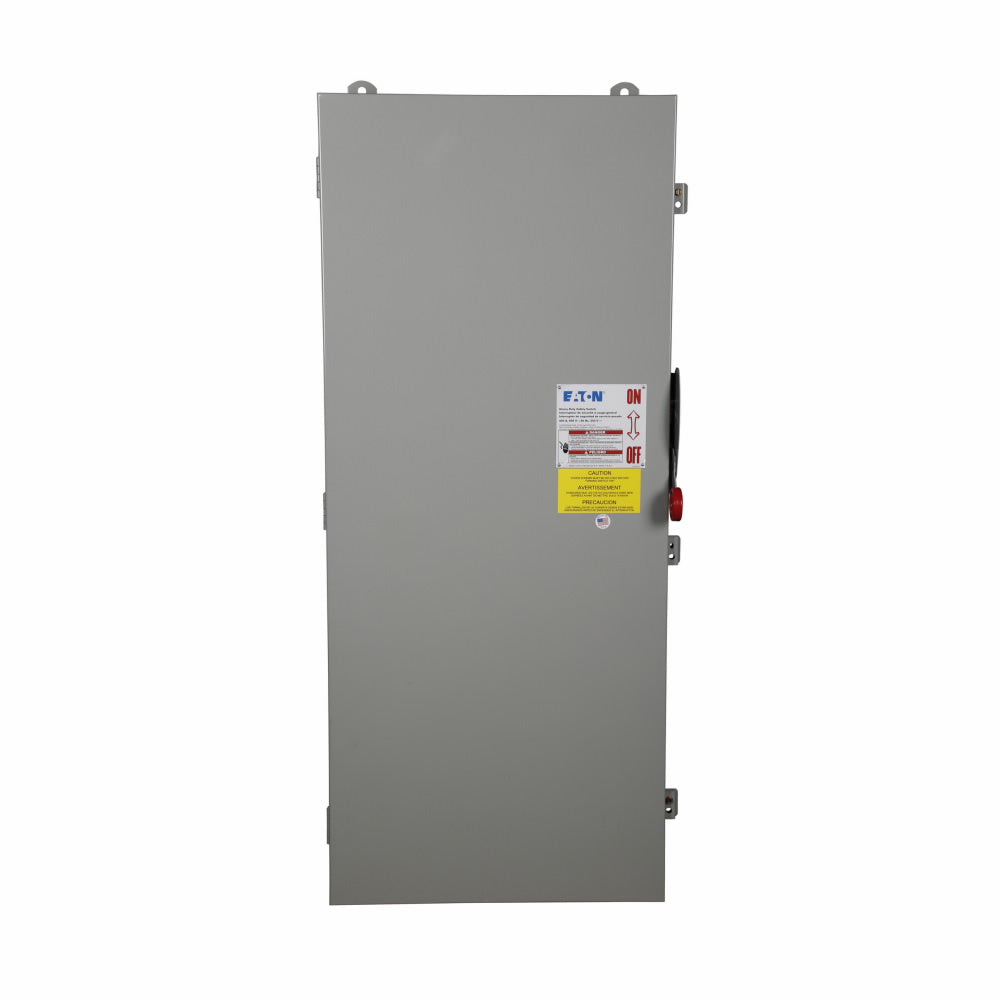

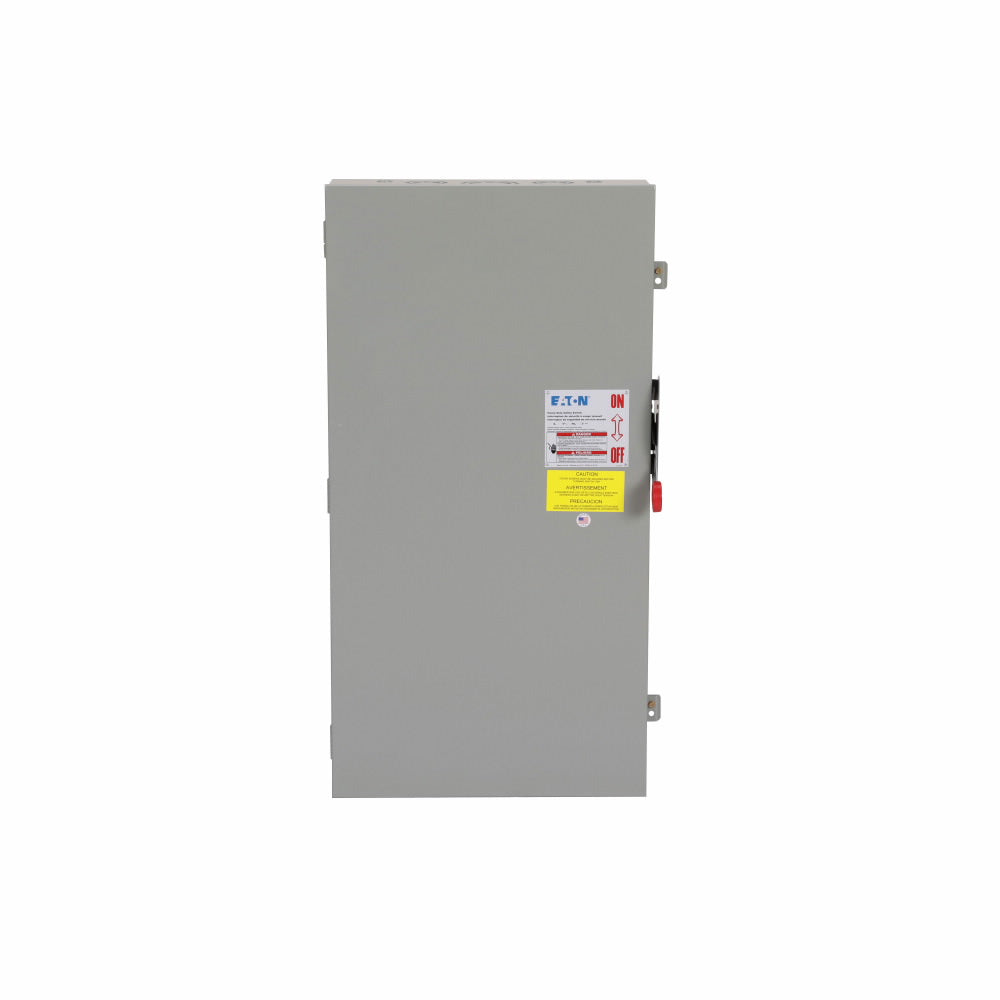

Cutler Hammer DH365UDK is a heavy-duty industrial disconnect switch designed for safe power isolation in high-capacity electrical systems. This UL-listed, non-fusible switch features a 600V AC rating with 400A continuous current capacity and 100kA interrupting rating, housed in a NEMA 12 enclosure measuring 24.12"W x 12.43"D x 57.47"H. The three-pole single-throw configuration complies with NEC 230.62(C) barrier requirements and is compatible with SKLA frames, constructed with robust materials for industrial power distribution applications including motor control centers and service entrance equipment.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch
• Voltage Rating: 600V AC
• Current Rating: 400A
• Dimensions: 24.12 x 12.43 x 57.47 inches (WxDxH)
• Weight: 150 lb
• Standards: UL Listed, NEC 230.62(C) compliant
• Applications: Industrial power distribution, motor control centers
• Configuration: Single
• Poles: 3
• AIC rating: 100kA@600V
• Switch Style: Non-Fusible
• Nema Rating: NEMA 12
• Phase: 3
• Compatible Frames: SKLA

Product Identification

• UPC: 782113207322
• GTIN: 00782113000000
