Cutler Hammer DH365NRK - Fusible Disconnect Switch 400A@600V (100kA AIC, NEMA 3R)
Regular price
$2,793.61
$2,793.61
Regular price
$13,498.80
$13,498.80
Sale price
$2,793.61
$2,793.61
Save $10,705.19
/
- Low stock - 1 item left
- Backordered, shipping soon

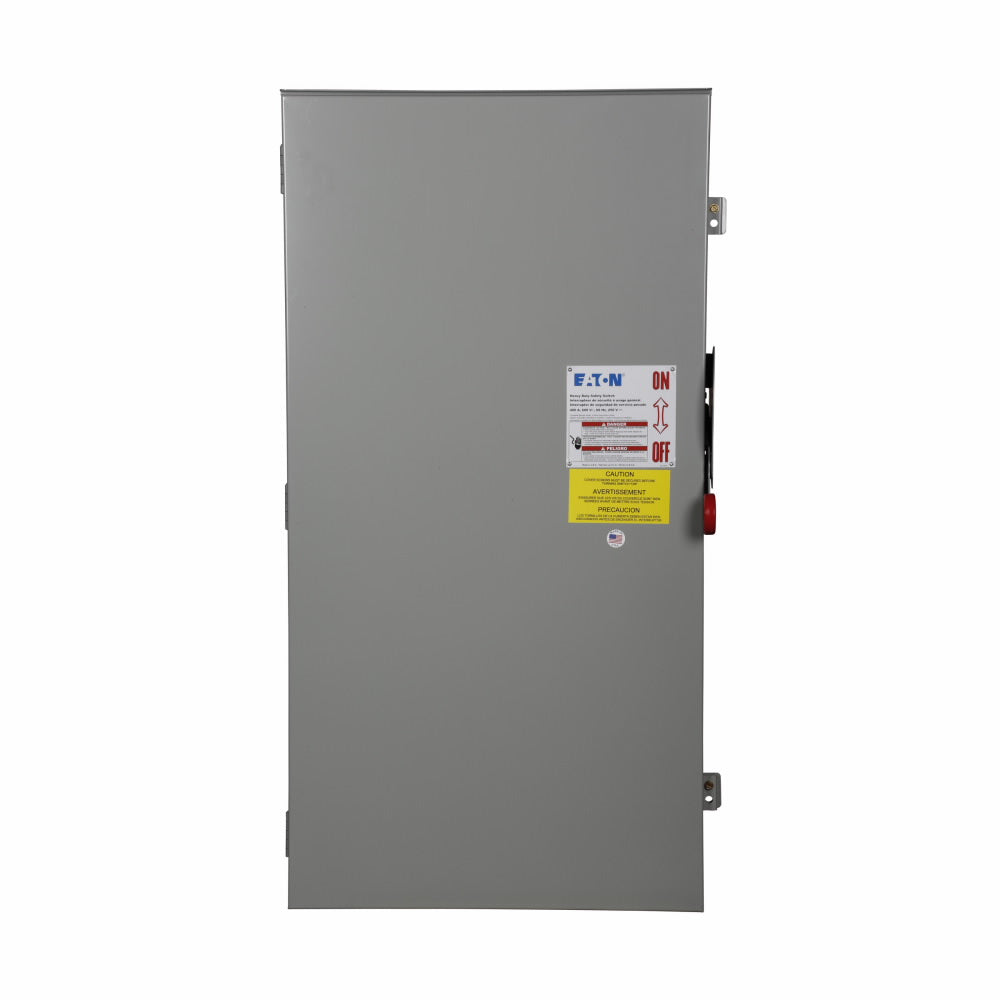

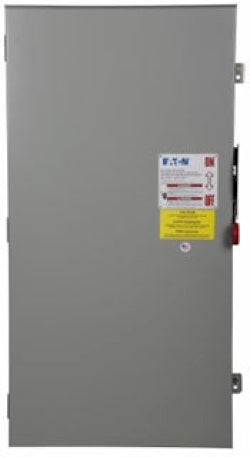

Cutler Hammer DH365NRK is a fusible safety disconnect switch designed for industrial power distribution protection. This UL-listed, 600V-rated switch delivers 400A current capacity with a 100kA interrupting rating at 600V, housed in a NEMA 3R enclosure measuring 24.12"W x 44.76"D x 12.39"H. The three-pole single configuration features R-class fuse compatibility and complies with NEC 230.62(C) barrier requirements for enhanced safety. Its robust construction with SKHA frame compatibility makes it suitable for heavy-duty applications in manufacturing plants, data centers, and utility substations.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch with barrier protection
- Voltage Rating: 600V AC
- Current Rating: 400A
- Dimensions: 24.12 x 44.76 x 12.39 inches (WxDxH)
- Standards: UL Listed, NEC 230.62(C) compliant
- Applications: Industrial power distribution, motor control centers
- Switch Style: Fusible
- Configuration: Single
- Poles: 3
- Phase: 3
- AIC Rating: 100kA@600V
- NEMA Rating: 3R
- Fuse Class: R
- Weight: 150 lb
- Compatible Frames: SKHA
Product Identification
- UPC: 782113207261
- GTIN: 00782113000000
