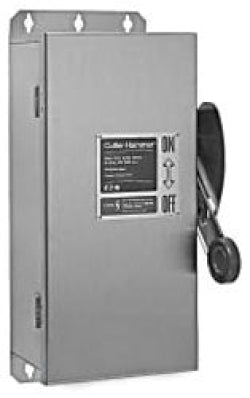

Cutler Hammer DH365FWK - Fusible Disconnect Switch 400A 600V (3-Pole NEMA 12)

Cutler Hammer DH365FWK is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial power distribution systems. This 3-pole switch operates at 600V AC with a 400A current rating and features a 100kA interrupting capacity at 600V for robust short-circuit protection. Constructed with a NEMA 12 enclosure measuring 27" x 57" x 11" (WxDxH) and weighing 150 lb, it accommodates Class R fuses for enhanced safety. The switch is UL Listed and compatible with SGLA frames, meeting industry standards for industrial electrical applications. Typical uses include motor control centers, industrial machinery, and power distribution panels where safe maintenance isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 600V AC
• Current Rating: 400A
• Dimensions: 27 in x 57 in x 11 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• AIC rating: 100kA@600V
• Fuse Class: R
• Nema Rating: NEMA 12
• Phase: 3
• Compatible Frames: SGLA
• Weight: 150 lb
• Country of Origin: United States

Product Identification

• UPC: 782114357378
• GTIN: 00782114357378
