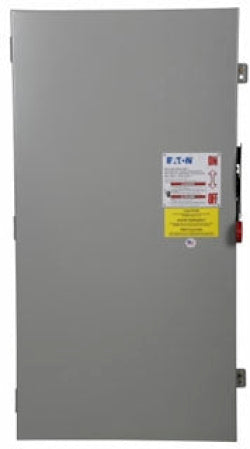

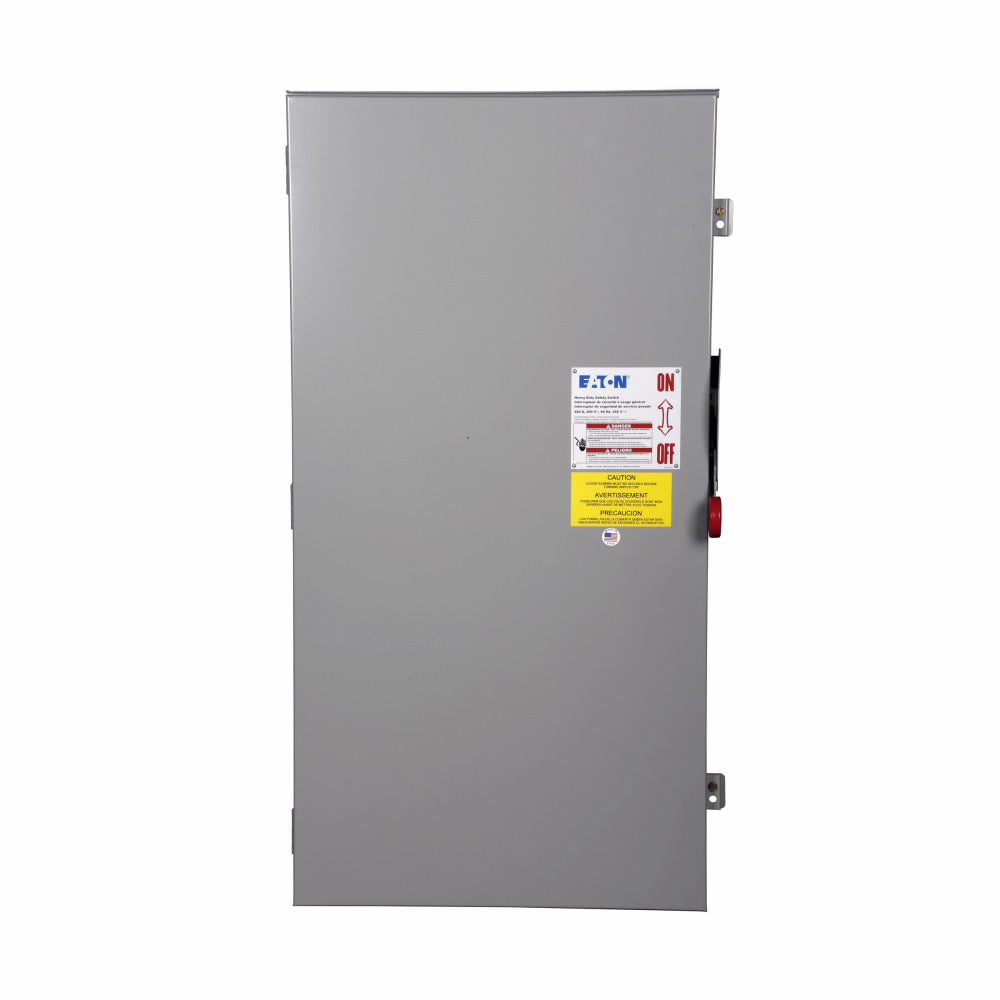

Cutler Hammer DH365FRK - Fusible Disconnect Switch 400A@600V (100kA AIC)

Cutler Hammer DH365FRK is a fusible safety disconnect switch designed for high-current industrial power distribution systems. This UL-listed 600VAC switch features a 400A current rating and 100kA interrupting capacity, housed in a NEMA 3R-rated enclosure measuring 24.38"W x 45.5"D x 10.25"H. The three-pole single-configuration unit with Class R fuse compatibility meets stringent safety standards for industrial applications including motor control centers and heavy machinery power management.

Key Features & Specifications

• Type: Fusible safety disconnect switch with SGLA frame compatibility
• Voltage Rating: 600VAC
• Current Rating: 400A
• Dimensions: 24.38 x 45.5 x 10.25 inches (WxDxH)
• Standards: UL Listed, NEMA 3R
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 100kA@600V
• Fuse Class: R
• Weight: 150 lb
• Country of Origin: United States

Product Identification

• UPC: 782113207216
• GTIN: 00782113000000
