Cutler Hammer DH365FGK - Fusible Disconnect Switch 400A@600V (200kA AIC)
Regular price
$2,472.80
$2,472.80
Regular price
$6,855.00
$6,855.00
Sale price
$2,472.80
$2,472.80
Save $4,382.20
/
- Low stock - 5 items left
- Backordered, shipping soon

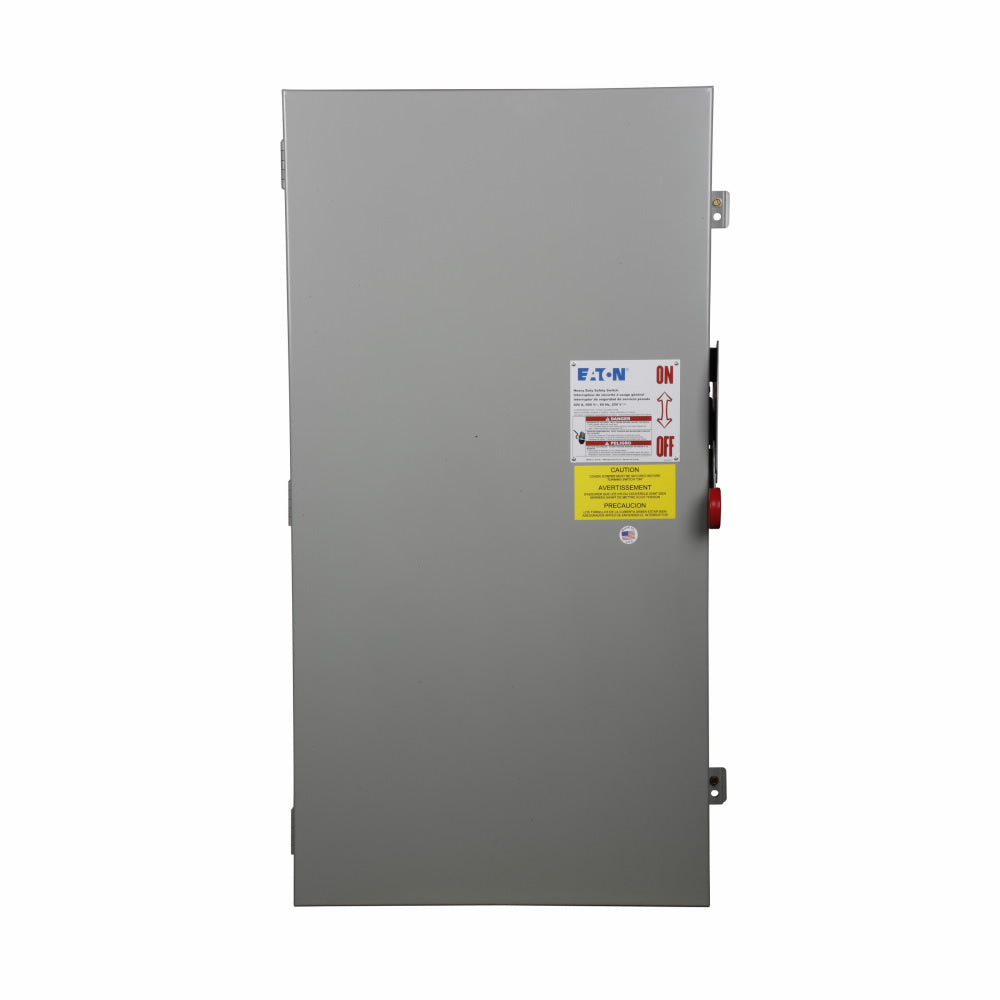

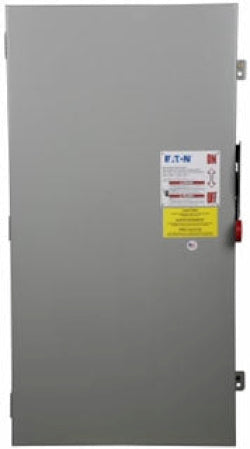

Cutler Hammer DH365FGK is a fusible safety disconnect switch designed for high-current circuit protection in industrial applications. This UL-listed, NEMA 1-rated switch features a 600V AC voltage rating and 400A current capacity with a 200kA interrupting rating at 600V for robust fault protection. The unit's heavy-duty construction measures 24.38" W × 45.5" D × 10.25" H and weighs 150 lb, featuring a 3-pole single configuration with Class R fuse compatibility. Compliant with NEC 230.62(C) barrier requirements, it's engineered for use with SGLA frames in three-phase power distribution systems, manufacturing plants, and heavy machinery installations.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Fusible safety disconnect switch, DH Series
- Voltage Rating: 600V AC
- Current Rating: 400A
- Dimensions: 24.38 × 45.5 × 10.25 inches (W×D×H)
- Standards: UL Listed, NEC 230.62(C) Compliant Barrier
- Applications: Industrial power distribution, heavy machinery
- Switch Style: Fusible
- Configuration: Single
- Poles: 3
- Phase: 3
- AIC Rating: 200kA@600V
- Fuse Class: R
- NEMA Rating: NEMA 1
- Weight: 150 lb
- Compatible Frames: SGLA
- Country of Origin: United States
Product Identification
- UPC: 782113207209
- GTIN: 00782113000000
