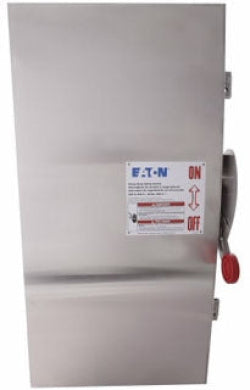

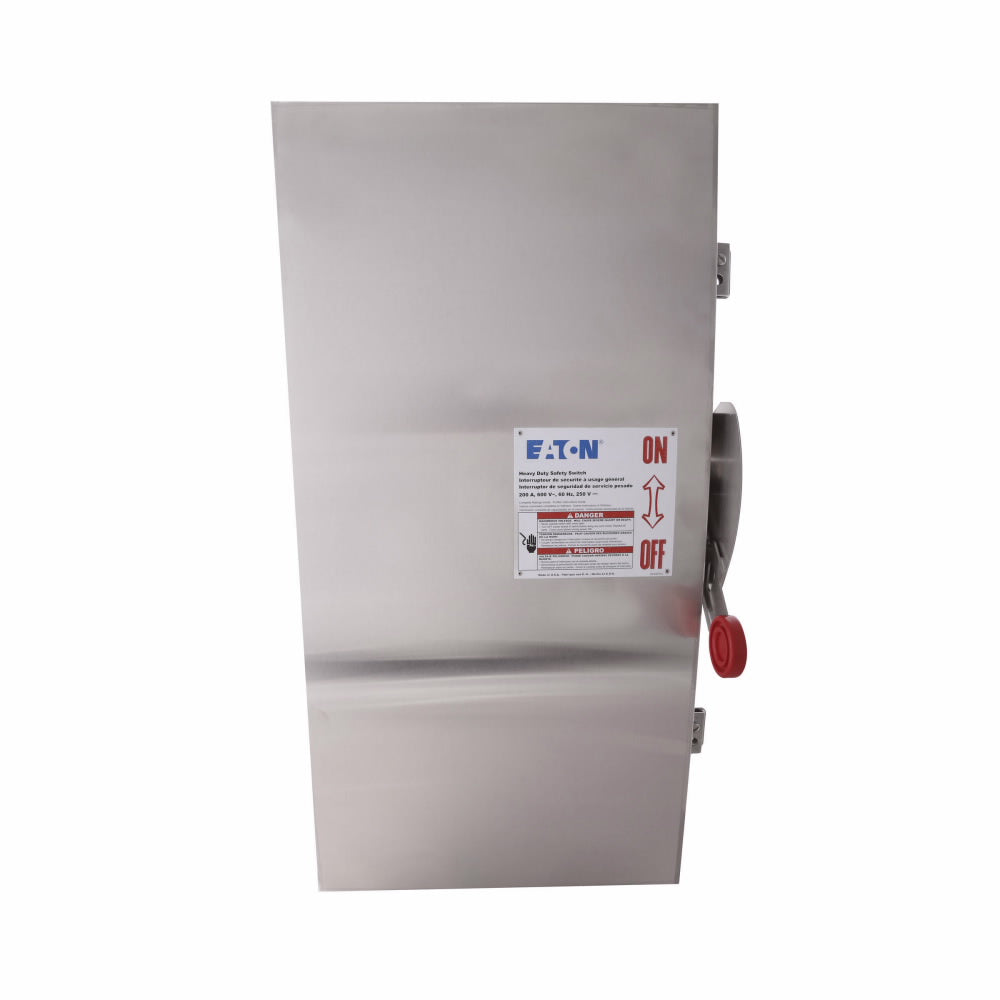

Cutler Hammer DH364UWK - Non-Fusible Disconnect Switch 600V/200A (200kA AIC @600V)

Cutler Hammer DH364UWK is a non-fusible disconnect switch designed for industrial power distribution systems requiring high interrupting capacity. The unit features a 600V AC voltage rating with a 200A current capacity and 200kA interrupting rating at 600V for robust circuit protection. Its NEMA 4X-rated enclosure measures 16" x 11.5" x 34.38" (WxDxH) with a 50 lb steel construction, meeting UL standards and NEC 230.62(C) barrier requirements. This three-phase, three-pole switch is compatible with SGHA frames and designed for use in harsh environments where corrosion resistance and durability are critical.

Key Features & Specifications

• Type: Non-fusible disconnect switch, steel enclosure
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 16 in x 11.5 in x 34.38 in (WxDxH)
• Standards: UL Listed, NEC 230.62(C) compliant
• Applications: Industrial power distribution, motor control
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• NEMA Rating: 4X
• Phase: 3
• Weight: 50 lb
• Compatible Frames: SGHA

Product Identification

• UPC: 782113206899
• GTIN: 00782113000000
