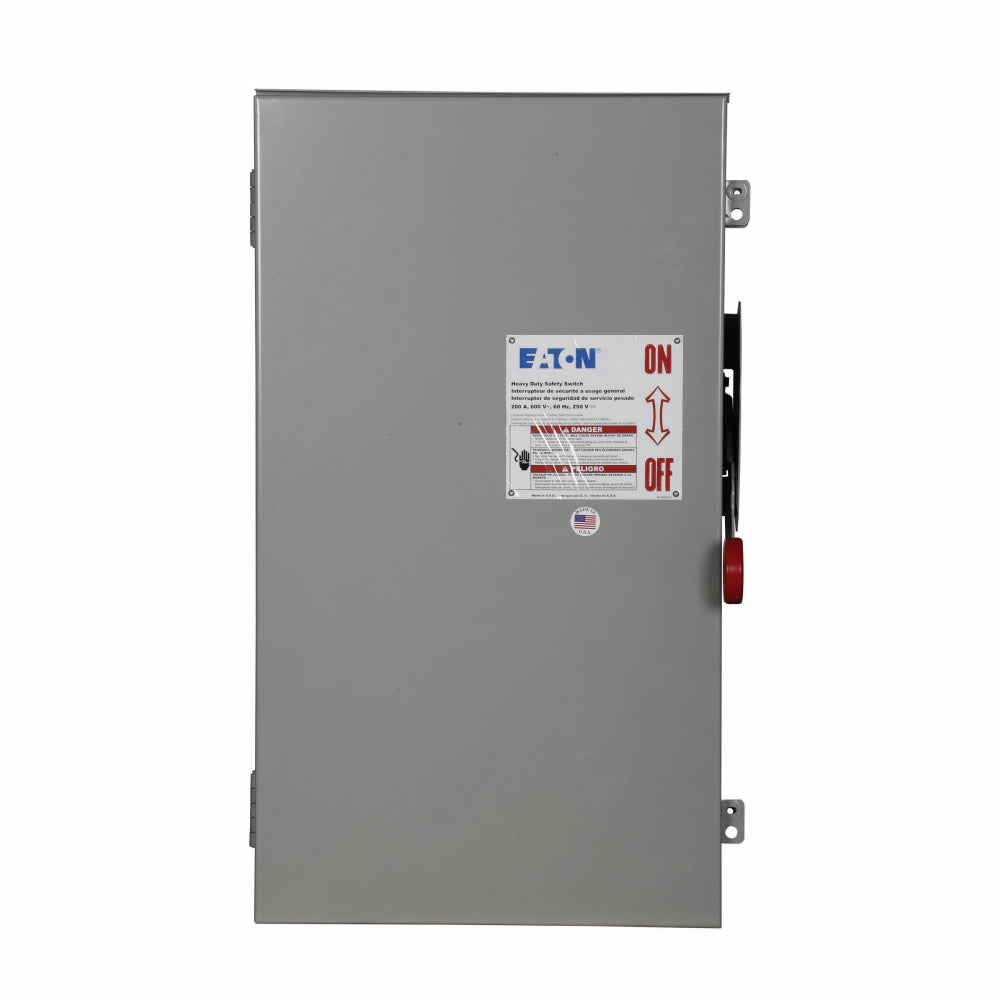

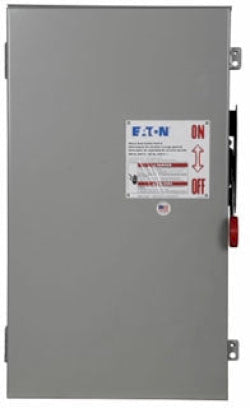

Cutler Hammer DH364NRK - Fusible Disconnect Switch 200A 600V (NEMA 4X, 200kA AIC)

Cutler Hammer DH364NRK is a fusible safety disconnect switch designed for industrial power distribution system protection. This 3-pole switch provides reliable circuit isolation and features a 600V voltage rating with 200A current handling capacity. The rugged NEMA 4X rated enclosure measures 18 x 30 x 9.5 inches (WxDxH) and weighs 50 lb, constructed for demanding environments. UL Listed certification ensures compliance with industry safety standards, while the 200kA@600V AIC rating provides substantial interrupting capacity. Typical applications include industrial control panels, motor control centers, and main distribution equipment where fused protection is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 18 in x 30 in x 9.5 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers, main disconnects
• Switch Type: Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Nema Rating: NEMA 4X
• Fuse Class: R
• Wire Size: #6 to 250KCmil, Cu/Al
• Compatible Frames: THJK
• Weight: 50 lb
• Country of Origin: United States

Product Identification

• UPC: 782113206837
• GTIN: 00782274052403
