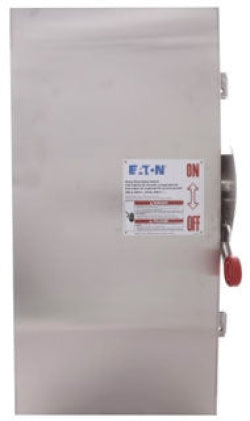

Cutler Hammer DH364FWK - Fusible Disconnect Switch 200A 600V (3-Pole NEMA 4)

Cutler Hammer DH364FWK is a fusible safety disconnect switch designed for industrial power isolation and circuit protection. This 3-pole switch provides reliable interruption of 3-phase circuits with a 600V AC voltage rating and 200A current handling capacity, housed in a robust NEMA 4 enclosure measuring 19" x 37.5" x 11.5" (WxDxH) with a weight of 50 lb. UL Listed certification ensures compliance with industry safety standards, while the 200kA interrupting rating at 600V delivers superior fault current protection. The DH Series switch is engineered for demanding industrial applications including motor control centers, power distribution systems, and machinery requiring safe maintenance isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series, single configuration
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 19 in x 37.5 in x 11.5 in (WxDxH)
• Standards: UL Listed
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Switch Style: Fusible
• Nema Rating: 4
• Fuse Class: R
• Compatible Frames: TB
• Weight: 50 lb
• Country of Origin: United States

Product Identification

• UPC: 782113206905
• GTIN: 00782113206905
