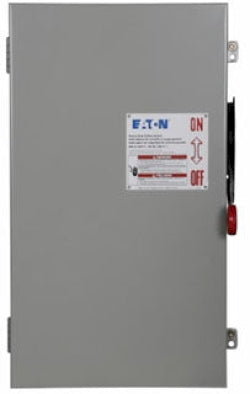

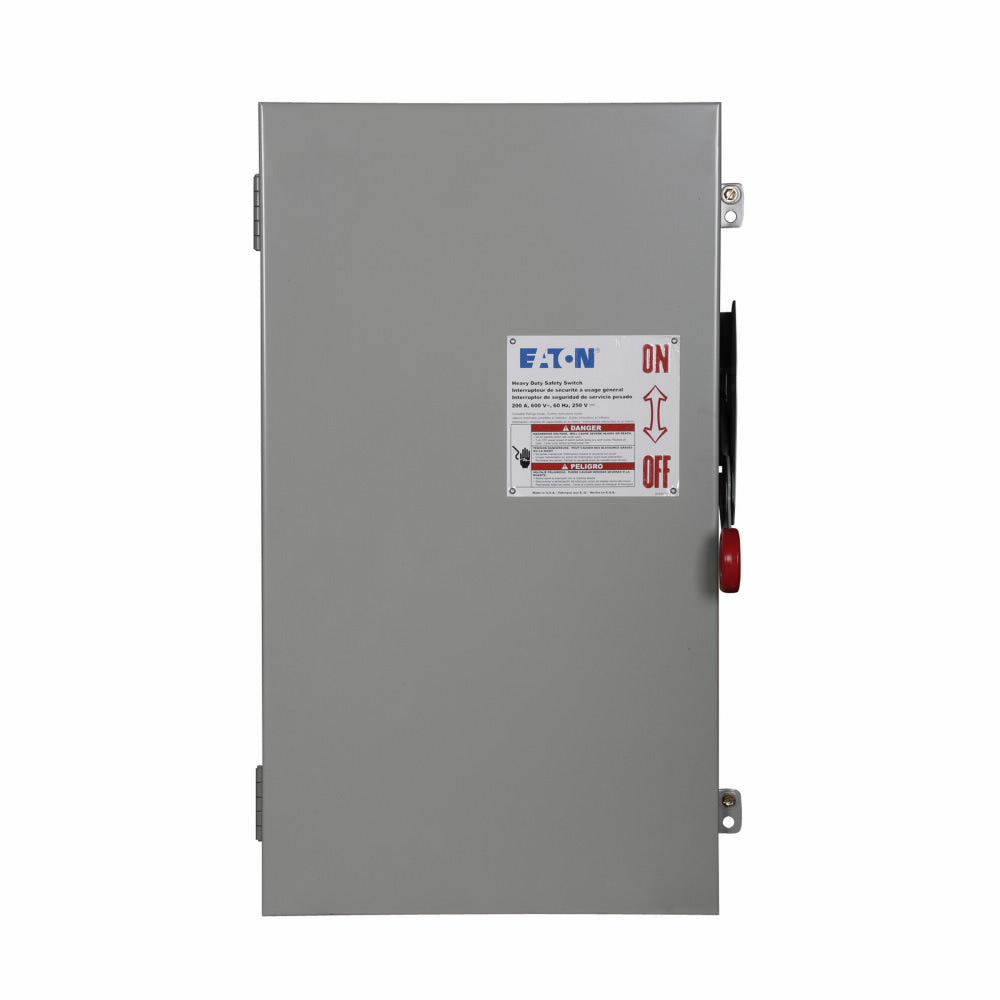

Cutler Hammer DH364FGK - Fusible Disconnect Switch 200A 600V AC (3-Pole NEMA 1)

Cutler Hammer DH364FGK is a fusible safety disconnect switch designed for industrial power isolation and circuit protection. This heavy-duty switch provides reliable load-breaking capability with ratings of 200A at 600V AC/250V DC and features a 200kA interrupting capacity for high-fault protection. Constructed with rugged NEMA 1 enclosure measuring 18" x 30" x 9.5" and weighing 50 lb, it accommodates Class R fuses in a 3-pole, single configuration. The unit complies with NEMA KS-1, UL98, and UL Listed standards, ensuring safe operation in demanding industrial environments. Typical applications include motor control centers, industrial machinery, and power distribution systems where visible circuit isolation is required.

Key Features & Specifications

• Type: Fusible safety disconnect switch, DH Series
• Voltage Rating: 600V AC/250V DC
• Current Rating: 200A
• Dimensions: 18 in x 30 in x 9.5 in (WxDxH)
• Standards: NEMA KS-1, UL Listed, UL98
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Switch Style: Fusible
• Nema Rating: NEMA 1
• Fuse Class: R
• Compatible Frames: SEPA
• Weight: 50 lb
• Country of Origin: United States

Product Identification

• UPC: 782113206783
• GTIN: 00785901505631
